Adjusting Wearing Plates

Wear plates (B) are located along entire length of knife back and are adjustable for wear on knife back. Edges of wearing plates (B) must line up with knife back along its entire length.

1. Hold knife (C) forward with fingers and adjust wearing plates (B) forward in the slots and parallel against knife back except for the left-hand wear plate closest to the knife head which should be pushed rearward.

IMPORTANT: Do not drive with a hammer or pry up with a screwdriver.

2. After moving wearing plates (B) forward, or after replacing them, tighten bolts (D) to specification

Specification

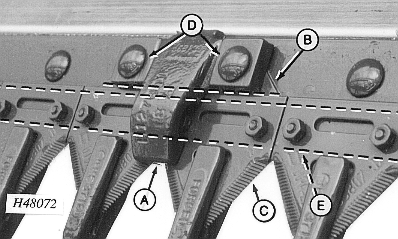

A-Hold Down Clip
B-Wear Plate
C-Knife
D-Bolt
E-Knife Back
