Replacing Knife Sections

1. Remove guards if needed.

2. Remove nuts (A) on section.

3. Tap or pry up section (B) and discard.


A-Nut
B-Section

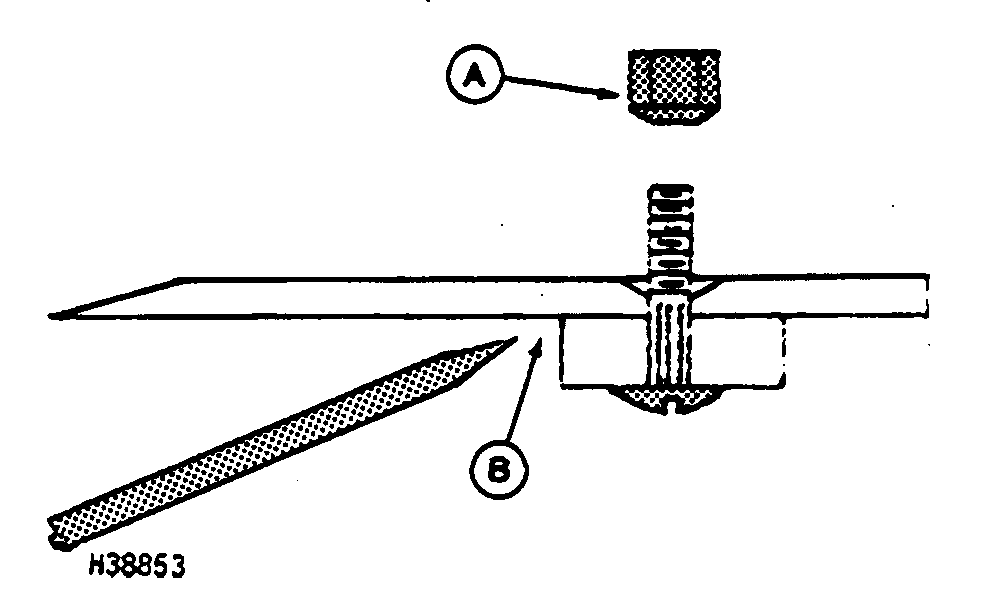

H38853

900CP,SE,J -19-18AUG97-1/2

4. Drive out any damaged bolts (A) with punch.

5. Replace bolts (A), if needed, by driving in from below with a hammer (B). Do not use nut to draw bolt up. Bolt must be driven in flush to knife back (C).

6. Install new section. Tighten nuts to specification. Nuts must have taper going down into section.

Specification

Nut -Torque 12 N·m (9 lb-ft)

7. Install guard if needed.

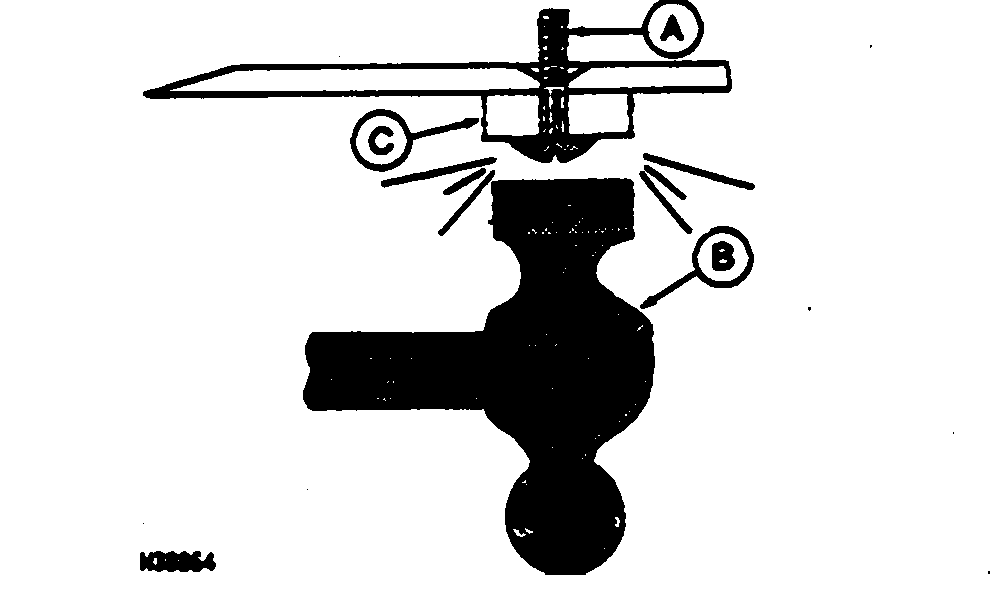

H38854


A-Bolts
B-Hammer

900CP,SE,J -19-18AUG97-2/2
