Aligning Guards

1. Cutterbar must be straight before aligning guards.

CAUTION: Always lower both reel cylinder stops when working under the reel.

2. Use a hammer and tap end of guard up or down to get a shear cut between section and guard. Tighten bolt as each guard is aligned.

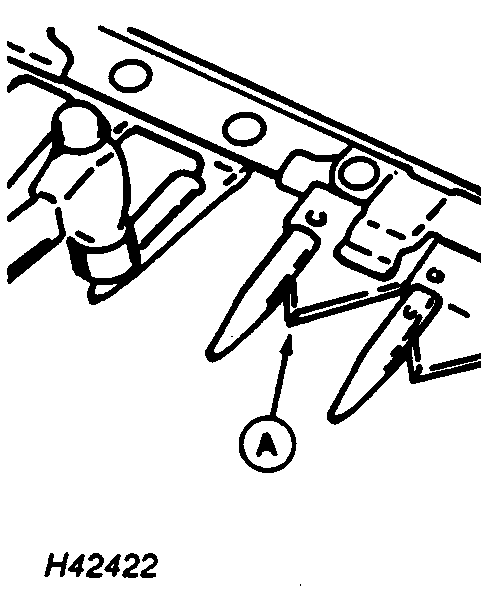

NOTE: Guard lip must be parallel with shear edge of guard. Note location of knife (A) as shown.

3. If replacing guards, align new guards to insure a shear cut.

A-Knife
