Adjusting Non-Clog Cutterbar Guards (Attachment)

Non-clog cutterbar guards are available as an attachment to help eliminate material buildup on the cutterbar and cutterbar clogging in matted, tangled and wet crop conditions.

1. Tap clips (A) up or down until knife (C) will slide under clips without binding.

2. After setting clips (A), be certain knife (C) works freely.

NOTE: (Flex platforms only) Remove outer clip on outer right-hand skid shoe when installing non-clog guards.

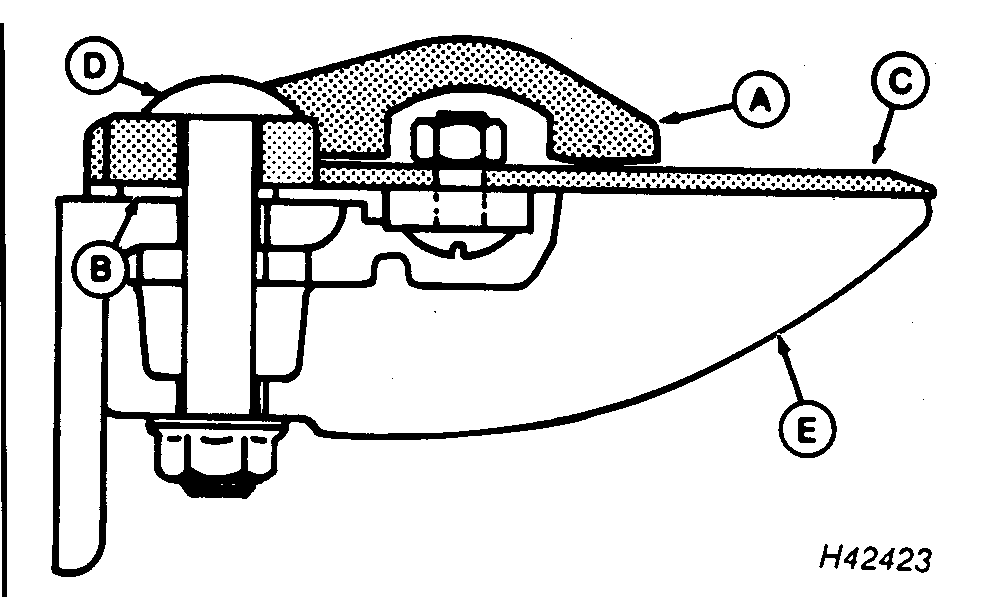

A-Knife Hold Down Clip
B-Wearing Plate
C-Knife
D-Round Head Bolt
E-Knife Guard

H42423
H42420
H42421
