Replacing Cutterbar Drive Belt

1. Remove left-hand long divider point from flex platforms. Remove belt by pulling handle (A) rearward and slipping belt from under tightener.

2. Loosen nuts (B) and remove bolts (C).

3. Slip new belt behind support (D).

4. Position belt in sheave grooves. Pull handle (A) rearward and slip belt under tightener.

5. Replace bolts (C) and tighten nuts (B).

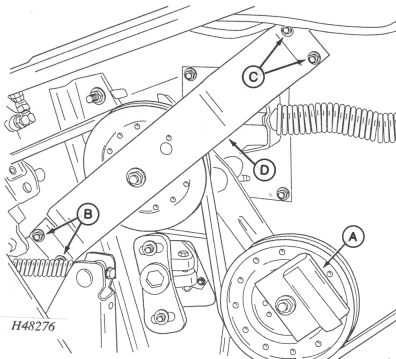

A-Handle
B-Nut
C-Bolts
D-Support

900CP,SE,N -19-18AUG97-1/1
