Side-to-Side Adjustment of Front Section of Standard PERMA-GLIDE™ Point

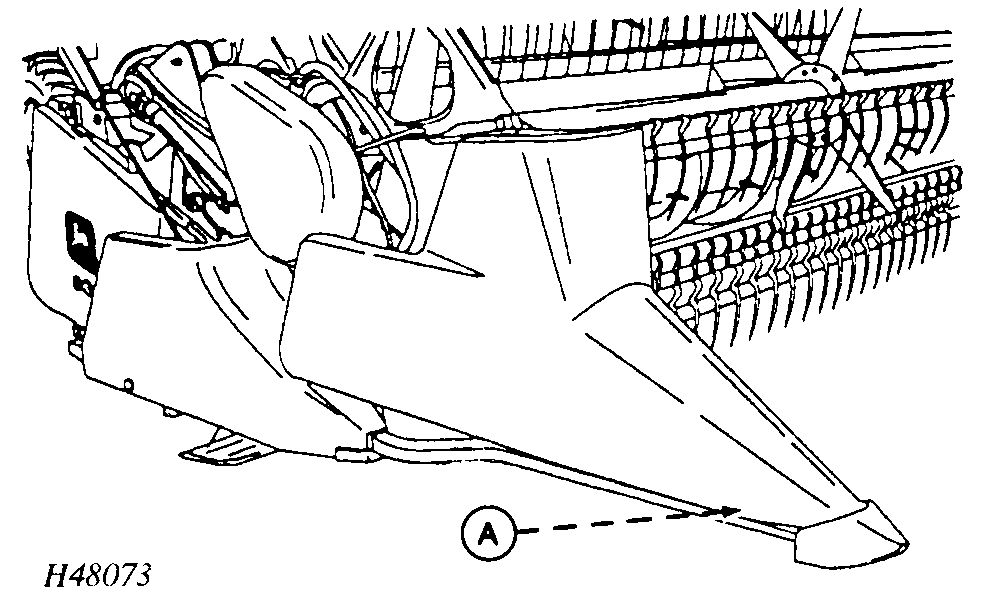

If more clearance is desired between the end of the reel and the inside edge of the front section of the standard PERMA-GLIDE ™ point, loosen the five screws (A) beneath the front end of the point.

A-Screws

PERMA-GLIDE is a trademark of Deere & Company.

HX,FPA,AE -19-18AUG97-1/1
