Adjusting Standard PERMA-GLIDE™ Divider Point Height

Adjust cutterbar tilt (see Cutterbar/Skid Plate Tilt Adjustment).

Lower platform to the ground.

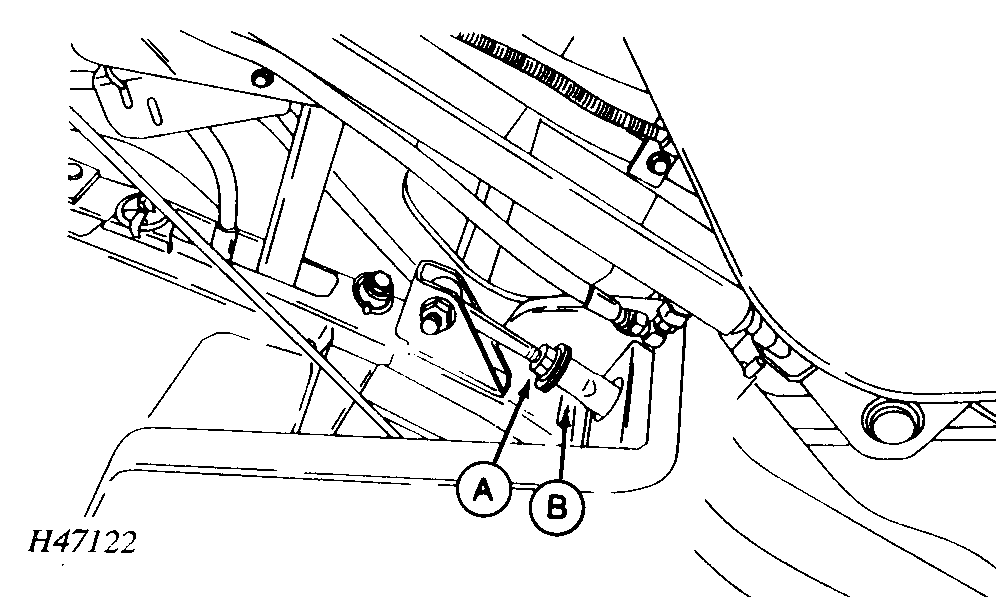

Loosen nut (A).

Turn tie rod (B) until desired height is obtained.

Tighten nut (A).

Repeat for other divider point.

Start combine engine and raise platform.

Set parking brake, shut off engine, remove key and lower safety stop.

CAUTION: Always lower safety stop when working under the platform. Set parking brake, shut off engine and remove key.

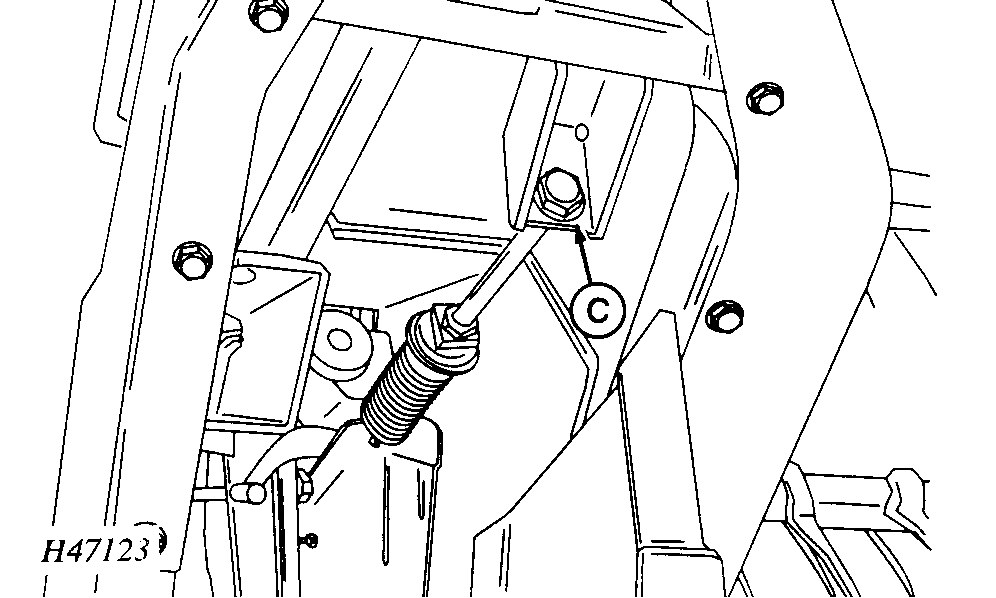

Turn spring adjusting bolt (C) in until divider point can be pushed upward easily and still return when released to lower position.

Repeat for other divider point.

NOTE: In softer ground the divider may need to be adjusted upward and the spring lift force increased to avoid plowing.

A-Nut
B-Tie Rod
C-Bolt

PERMA-GLIDE is a trademark of Deere & Company.

HX,FPA,B -19-18AUG97-1/1
