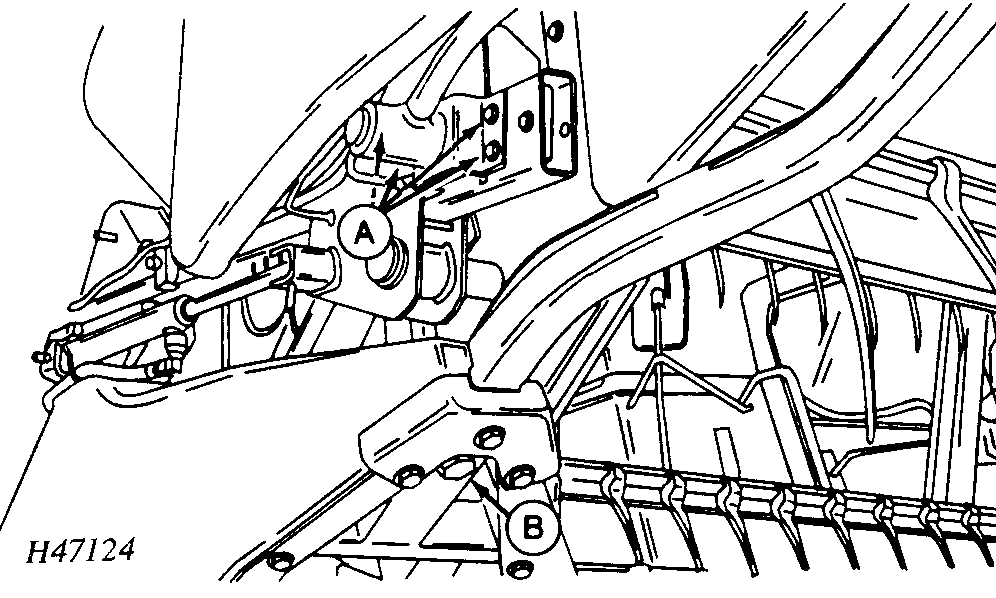

Removing Front Section of Standard PERMA-GLIDE™ Floating Divider Points for Standing CropThe front section of the divider point may be removed if not required to lift and separate down, lodged crop or prevent reel end wrapping. Remove cap screws (A) and cap screw (B).
|
|
|
PERMA-GLIDE is a trademark of Deere & Company. | HX,FPA,C -19-18AUG97-1/1 |
