Cutterbar/Skid Plate Tilt Adjustment

IMPORTANT: Platform must be on combine and cutterbar locked out to make platform rigid before adjusting cutterbar tilt, leveling cutterbar, adjusting range indicator (if so equipped) and adjusting reel clearance. Adjusting tilt without first locking out the cutterbar will result in erratic operation of the ACTIVE HEADER CONTROL (AHC) ™ system.

The tilt adjustment is made for platform cutterbar/skid plate to ground relationship. It is an adjustment made to compensate for tire size and other variables, but, MUST also be used to make the cutterbar straight.

Adjust as follows:

Check left-hand and right-hand side tire pressure or tire rim height; they should be equal, and at correct pressure.

Be certain platform is level (refer to combine Operator's Manual).

Lock-out flex cutterbar (see Locking-Out Flex Cutterbar).

Loosen nut (B) about 1.5 mm (1/16 in.) on both sides.

CAUTION: Lower feederhouse cylinder safety stop when working under platform. Set parking brake, shut off engine and remove key.

To level cutter bar:

Adjust left- and right-hand tilt channels until there is 19 mm (3/4 in.) of bolt showing in gap (A) between nut and bottom of tilt pin. Hold nut and tighten bolt.

Adjust stabilizer spring assembly before adjusting center tilt channels.

Use string from both ends of platform along tips of cutterbar guards to line them up, then adjust remaining tilt channels until cutterbar is straight.

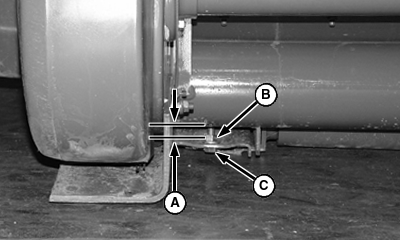

A-Gap
B-Nut
C-Bolt

ACTIVE HEADER CONTROL (AHC) is a trademark of Deere & Company

OUO6035,0000091 -19-15NOV00-1/3

Hold nut (B) and tighten adjusting bolt (C).

Once the cutter bar is level, the tilt should be adjusted to match tire size and expected ground conditions.

Calibrate head (See CALIBRATION SECTION in this manual).

Readjust range indicator (if so equipped) to be centered over "0" on label.

Adjust reel for 38 mm (1-1/2 in.) minimum clearance with cutterbar.

Remove lockout washers and bolts, for flex position.

OUO6035,0000091 -19-15NOV00-2/3

IMPORTANT: If cutterbar tilt change is required after making these initial adjustments, locking out the cutterbar will not be required as long as all tilt channel bolts are turned an equal amount.

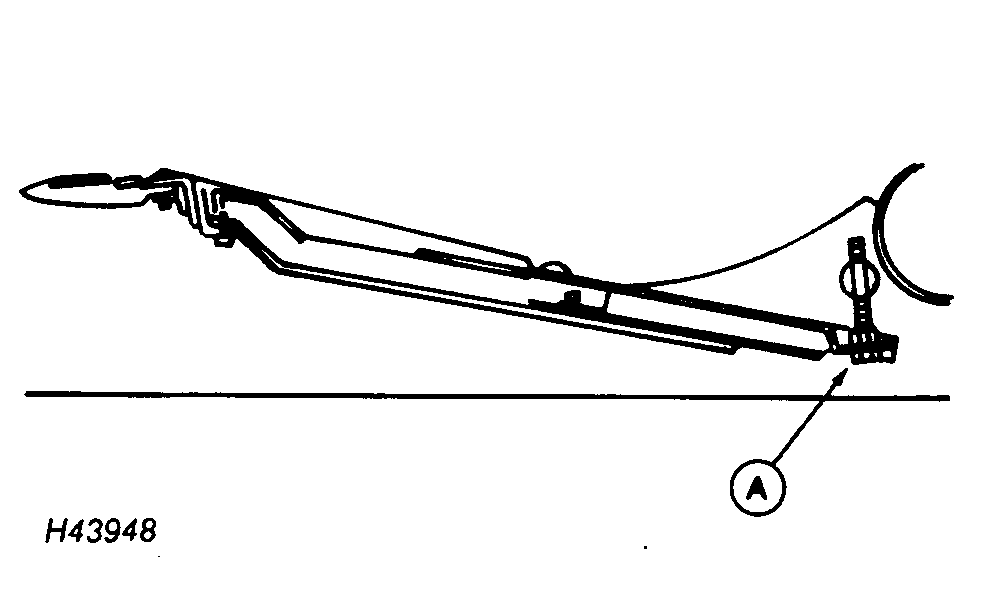

For Dry Conditions-Turn the adjusting bolt (A) IN to lower at front and raise at rear (tilt downward).

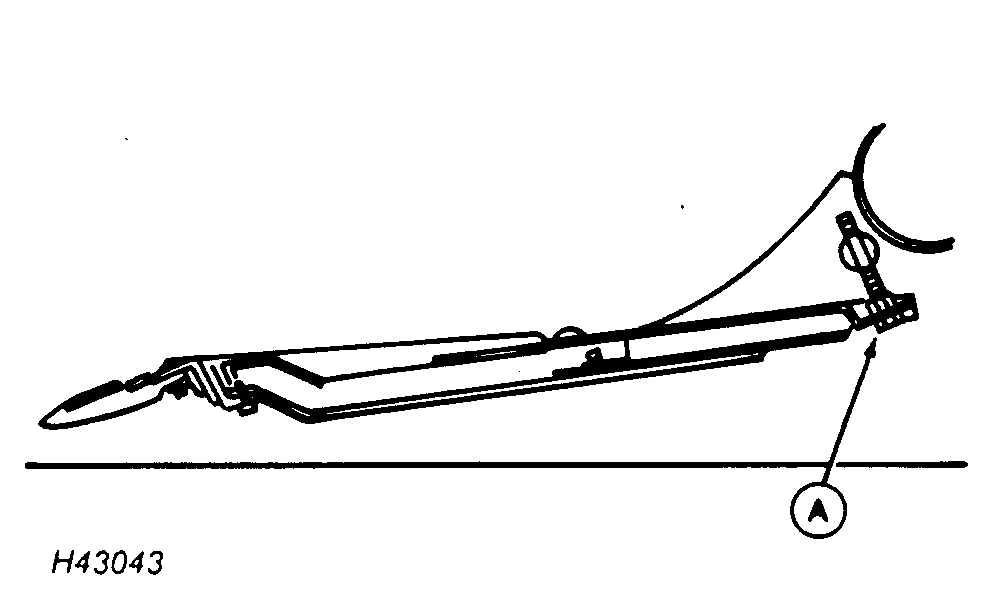

For Soft or Wet Conditions-Turn the adjusting bolt (A) OUT to raise at front and lower at rear (tilt upward).

The stabilizer spring and range indicator ball (if so equipped) can be readjusted with the left-and right-hand skid shoes resting on 100 x 100 mm (4 x 4 in.) wood blocks.

IMPORTANT: Readjust auger finger timing and reel.

Check auger height and divider point float height.

A-Bolt

OUO6035,0000091 -19-15NOV00-3/3
