Adjusting Auger Forward and Rearward

For most conditions, adjust auger so there is 6 mm (1/4 in.) minimum clearance between auger and fixed stripper support. Remove coupler chain and rotate auger by hand to check clearance on both sides of platform.

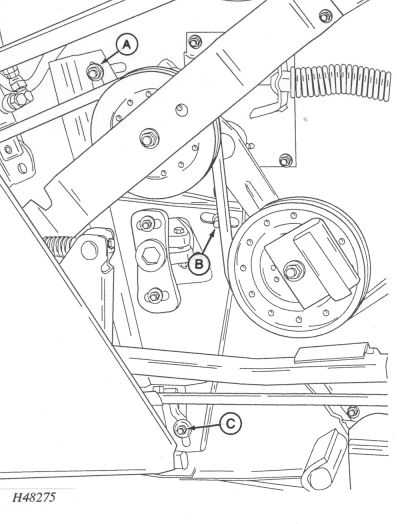

On left-hand side of platform, loosen nuts (A), (B) and (C).

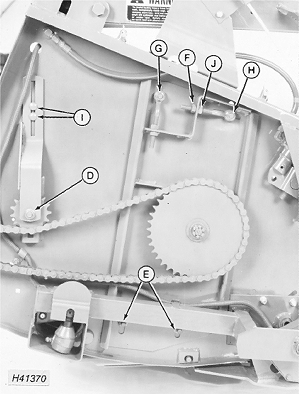

On right-hand side of platform, loosen nuts (D), (E), (F), (G), (H) and (I).

On right-hand end of platform, tighten nut (F) to move the auger forward. Tighten nut (J) to move the auger rearward.

Slide left-hand end of auger to where you want it.

On right-hand side of platform, tighten nuts (D), (E), (F), (G), (H), (I) and (J).

On left-hand side of platform, tighten nuts (A), (B) and (C).

Check chain tension.

IMPORTANT: Auger fingers must clear floor or flex sheet hold down bar by at least 5/8 in. (16 mm).

A-J-Nut

OUO6035,0000097 -19-29NOV00-1/1
