CONTOURMASTER ™ system maintains the horizontal header position relative to the ground. It uses sensors to determine height at each end of the header. The system tilts the header +/- 4 degrees to equalize the distances to the ground at each end of the header. This system uses a special feeder house to allow the header to tilt left and right.

If the combine is equipped with Header Height Sensing (optional), they work together to maintain the closest position of the cutter bar to the ground.

The system must be calibrated for each header that is used with the combine (See Calibration Procedures in this Manual).

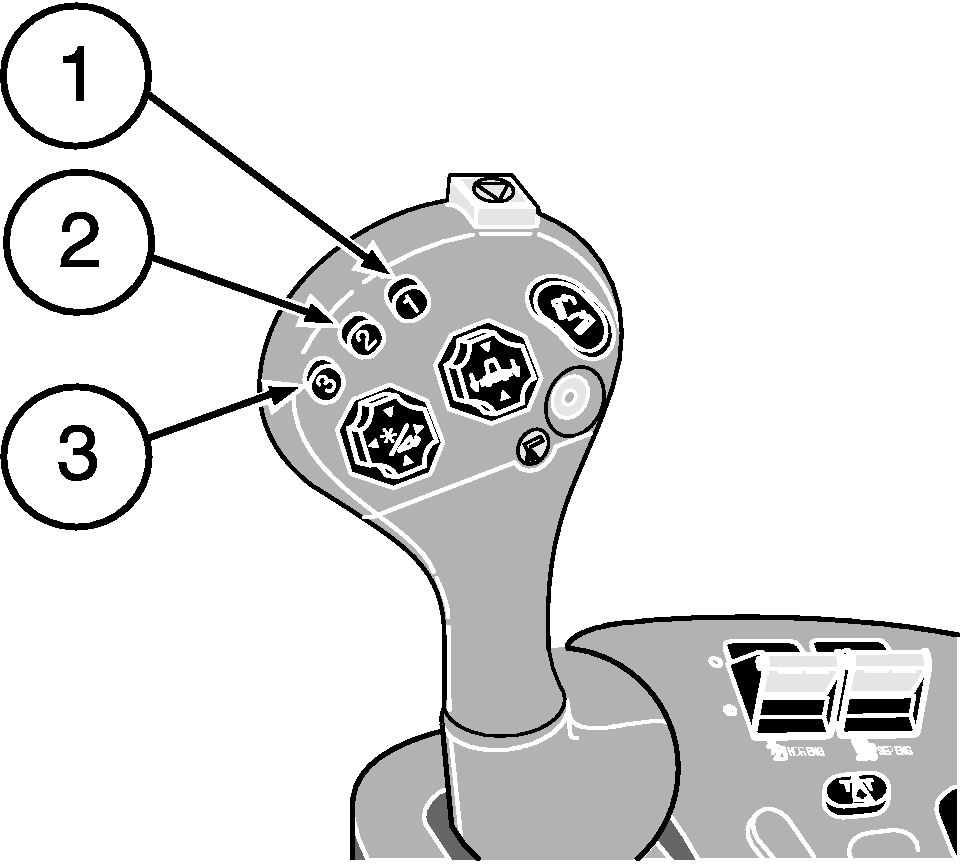

When CONTOURMASTER ™ system is enabled, the system can be activated with any of the three activation buttons located on the multi-function handle.

CONTOURMASTER is a trademark of Deere & Company

OUO6035,000140B -19-07MAY01-1/3

If Header Height Sensing and Header Height Resume are enabled, activation of button number 1 will activate Header Height Resume and CONTOURMASTER ™ system.

Activation buttons 2 and 3 will activate Header Height Sensing and CONTOURMASTER ™ system.

NOTE: CONTOURMASTER ™ system on the flex headers will not operate if the head is off the ground or the cutter bar is locked out.

CONTOURMASTER ™ system on rigid headers operates at any height above the ground.

If the Header Height Resume and Header Height Sensing systems are disabled, CONTOURMASTER ™ system will still operate.

If the CONTOURMASTER ™ system is disabled, Header Height Resume and Header Height Sensing will still operate.

Operation:

1. A properly equipped header is connected to the combine.
2. The engine is running.
3. The road transport disconnect switch is in the field position.
4. CONTOURMASTER ™ mode is enabled.
5. The header engage switch is engaged.

CONTOURMASTER is a trademark of Deere & Company

OUO6035,000140B -19-07MAY01-2/3

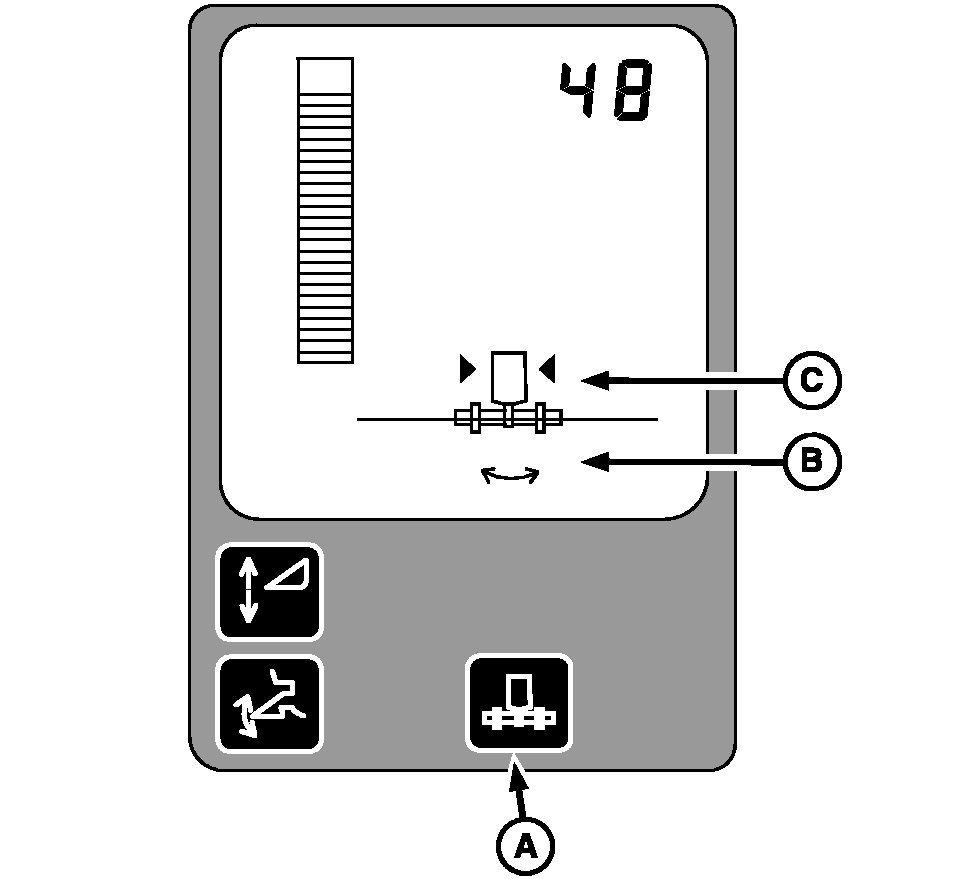

The CONTOURMASTER ™ tilt system is enabled by pressing switch (A) on the corner post display unit. The CONTOURMASTER ™ tilt symbol (B) will appear on the display.

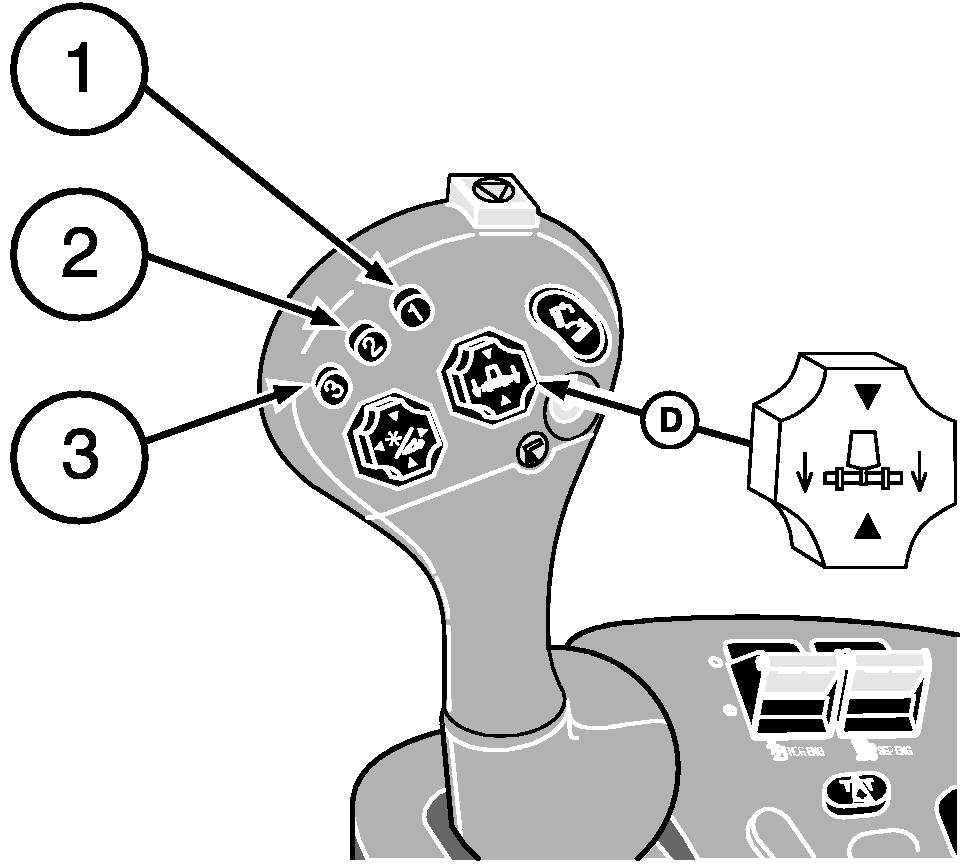

Activate the system by pressing any of the activation buttons 1, 2 or 3 on the multi-function handle. Arrows (C) on each side of the symbol indicate that the system is active.

NOTE: Pressing the manual tilt switch (D) overrides CONTOURMASTER ™ system, when the switch is released the system returns to the automatic mode.

Press right side of switch (D) to tilt header to the right. Press the left side of the switch to tilt header to the left.

If activated alone or with Header Height Resume, manually raising the header height with switch (D) on the multi-function handle for 1.5 seconds will deactivate the CONTOURMASTER ™ system.

If activated with Header Height Sensing, CONTOURMASTER ™ will deactivate at the same time as the Header Height Sensing system.

Pressing any of the activation buttons will reactivate the system.

The CONTOURMASTER ™ system can be disabled by pressing switch (A).

A-Switch
B-Tilt Symbol
C-Indicator Arrows
D-Switch

CONTOURMASTER is a trademark of Deere & Company

OUO6035,000140B -19-07MAY01-3/3
