Installing Short Windrow Drive Belt (Optional) (Regular Straw Chopper)

IMPORTANT: On 9450 combines (only) the short windrowing belt must be installed on the high speed sheave when windrowing.

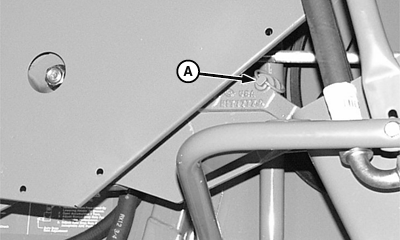

Remove quick lock pin (A) from handle.

A-Quick Lock Pin

HX,AG,SF7015 -19-14JUL99-1/5

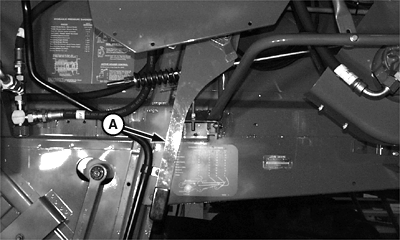

To loosen idler move handle (A) to down position

A-Handle

HX,AG,SF7015 -19-14JUL99-2/5

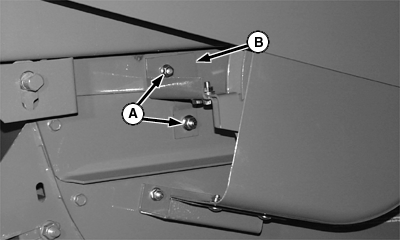

IF EQUIPPED: Remove cap screws, nuts (A) and cob deflector (B).

A-Nuts
B-Cob Deflector

HX,AG,SF7015 -19-14JUL99-3/5

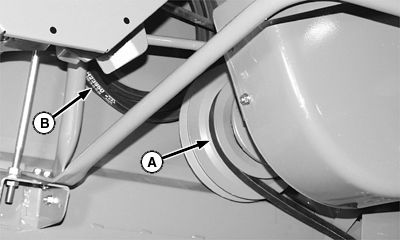

Remove belt (A) and install short belt.

Store belt (B) on storage hook.

A-Belt

HX,AG,SF7015 -19-14JUL99-4/5

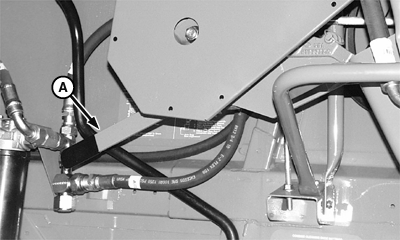

Move handle (A) to locked position to tighten idler.

A-Handle

HX,AG,SF7015 -19-14JUL99-5/5
