Changing Chopper Speeds

IMPORTANT: To prevent damage to chopper and tailboard, the chopper must be in "slow speed" position when harvesting corn.

Remove quick lock pin (A) from handle.


A-Quick Lock Pin

H69304

HX,AG,SF7017 -19-03MAR99-1/5

To loosen idler move handle to down position.


A-Handle

H69302

HX,AG,SF7017 -19-03MAR99-2/5

NOTE: Rear belt shield removed for photographic clarity.

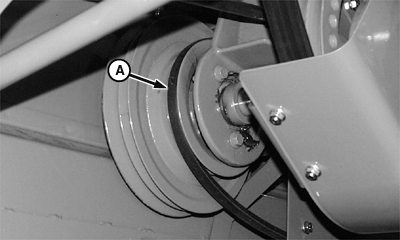

For low speed (1200 rpm):

Install drive belt on small diameter groove (A) on jackshaft sheave and on large diameter groove (B) on chopper sheave.


A-Small Diameter Groove
B-Large Diameter Groove

H69306
H54299

HX,AG,SF7017 -19-03MAR99-3/5

NOTE: Rear belt shield removed for photographic clarity.

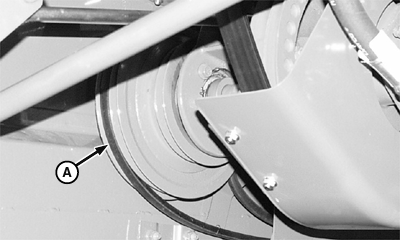

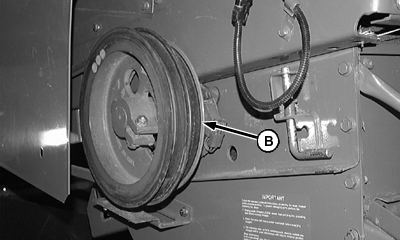

For high speed (2500 rpm):

Install drive belt on large diameter groove (A) on jackshaft sheave and on small diameter groove (B) on chopper sheave.


A-Large Diameter Groove
B-Small Diameter Groove

H69307
H54301

HX,AG,SF7017 -19-03MAR99-4/5

Move handle (A) to locked position (as shown).


A-Handle

H69305

HX,AG,SF7017 -19-03MAR99-5/5
