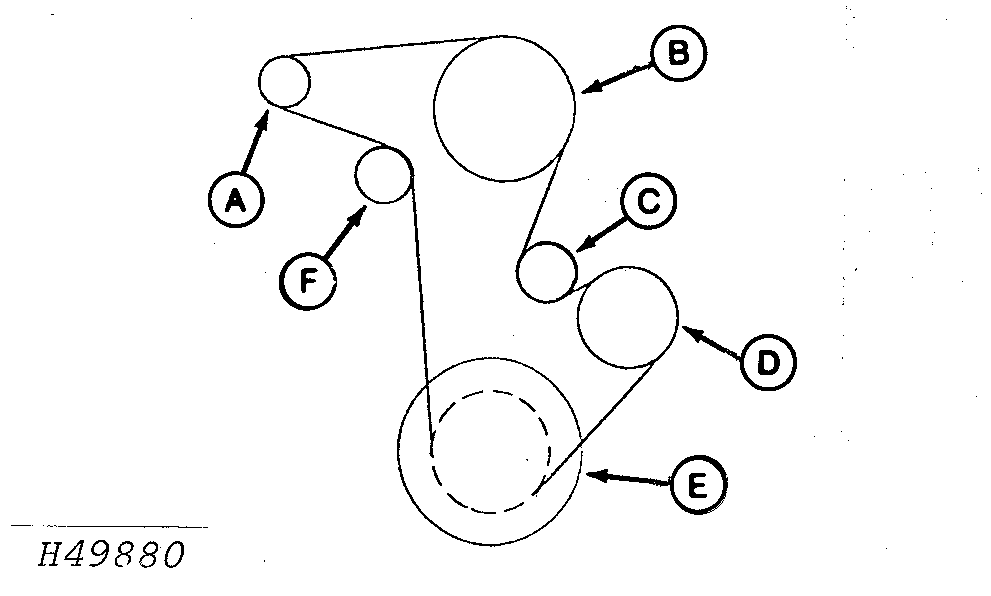

Engine Accessory Drive Belt Routing
A-Alternator
B-Idler
C-Air Conditioning Compressor
D-Engine Crankshaft
E-Water Pump
F-Spring Loaded Idler
|
9450 Combine
|
|
|
HX,AG,SF7093 -19-01SEP98-1/3
|
|

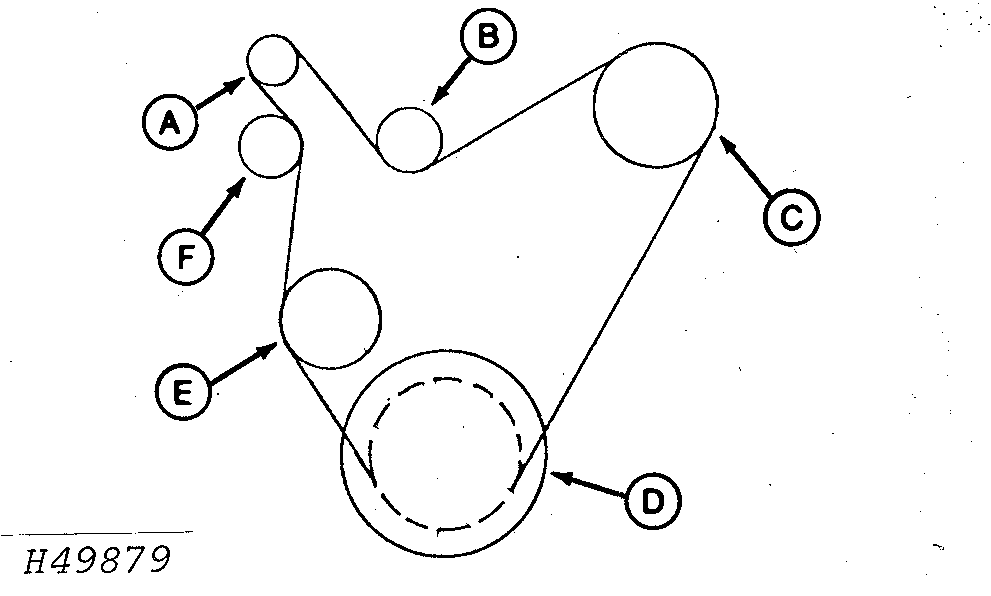

A-Alternator
B-Fan Pully
C-Water Pump
D-Air Conditioning Compressor
E-Engine Crankshaft
F-Spring Loaded Idler
|
9550 Combine
|
|
|
HX,AG,SF7093 -19-01SEP98-2/3
|
|

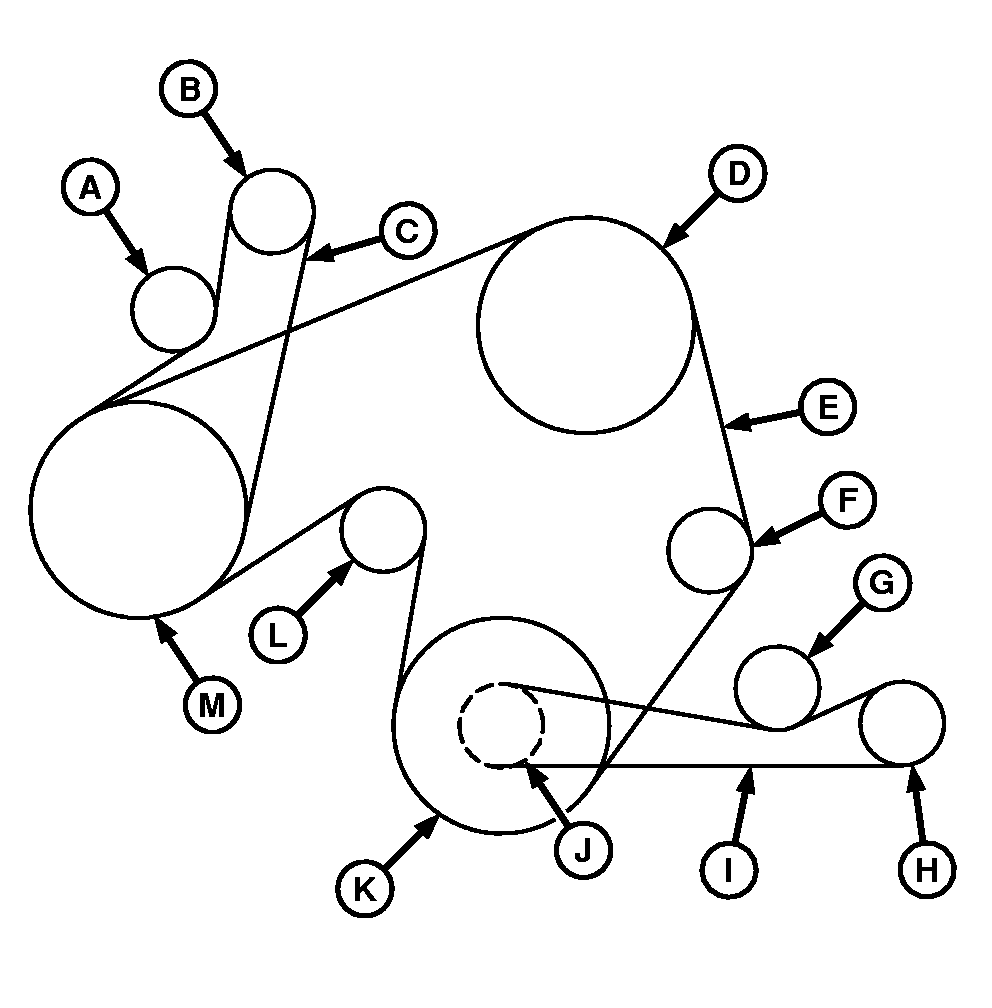

A-Spring Loaded Idler
B-Alternator
C-Alternator Belt
D-Water Pump Sheave
E-Fan Belt
F-Air Conditioning Compressor
G-Tension Idler
H-Rotary Screen Driven Sheave
I-Rotary Screen Drive Belt
J-Rotary Screen Drive Sheave
K-Engine Crank Shaft Sheave
L-Spring Loaded Idler
M-Fan Drive Sheave
|
9650 Combines
|
|
|
HX,AG,SF7093 -19-01SEP98-3/3
|
|
