Removing Conveyor Chain Links

First Adjustment (Approximately 500 Hrs):

Remove offset links (A) for initial chain adjustment.

Second Adjustment (Approximately 1200 Hrs):

NOTE: When replacing chain links always check sprockets for wear. To replace sprockets see procedures later in this group.

Remove inside link (B) and replace it with an offset link. The offset link now becomes the coupler link.

Repeat this procedure on all strands of chain.

When adjustment is all used up from step 2 the chain is worn out and should be replaced.

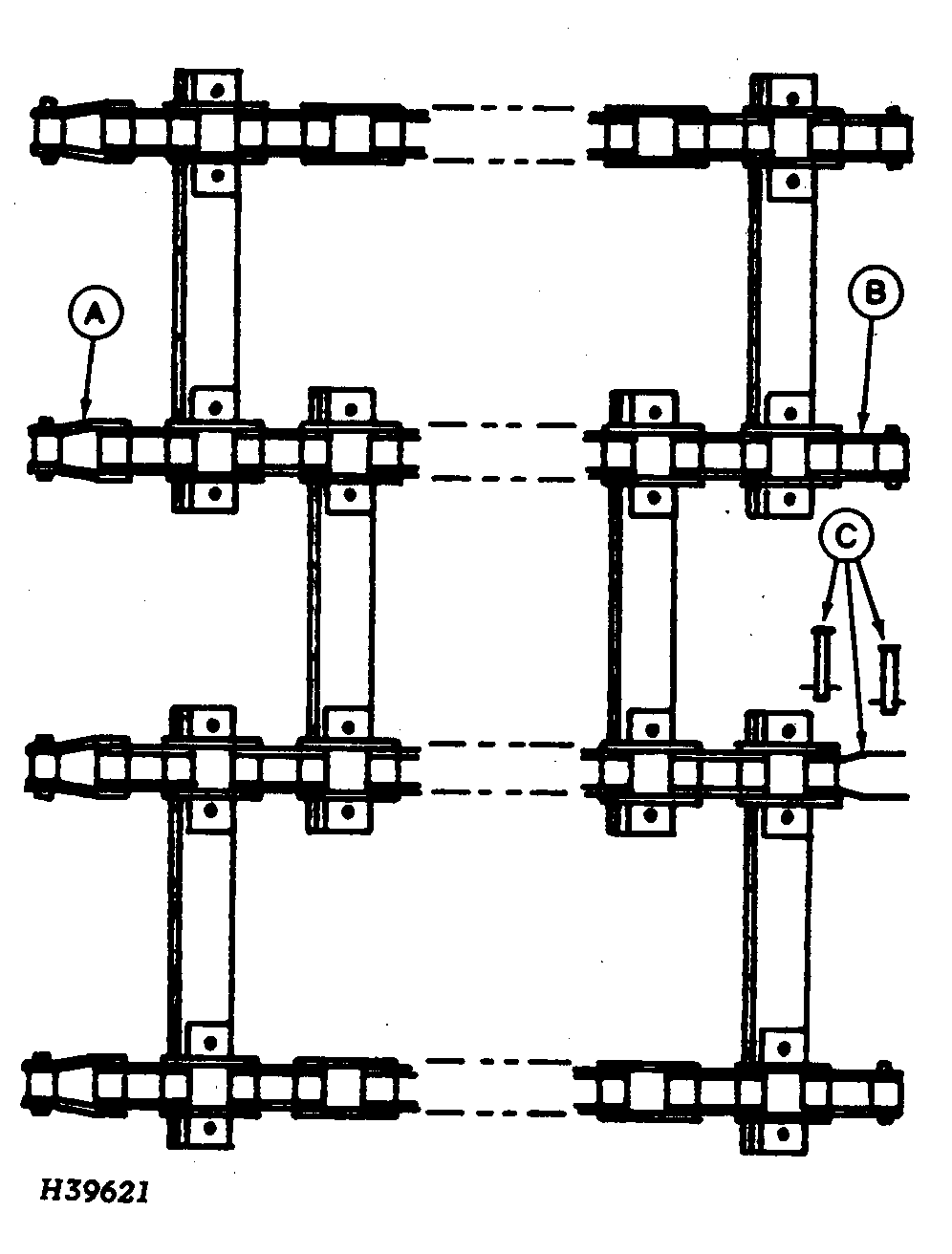

A-Offset Links
B-Inside Link
C-Offset Link
