Dual-Range POSI-TORQ Cylinder Drives (9550 and 9650 Corn Combines)

The standard Dual-Range Cylinder Drive has a high range (direct drive) of 480-980 rpm and a low range (reduction drive) of 240-480 rpm.

A slow speed drive is available for edible beans or peas that operates at approximately 150-250 rpm in low range (reduction drive) and approximately 300-500 rpm in high range (direct drive).

IMPORTANT: Use slowest possible speed with large seed crops to reduce seed damage.

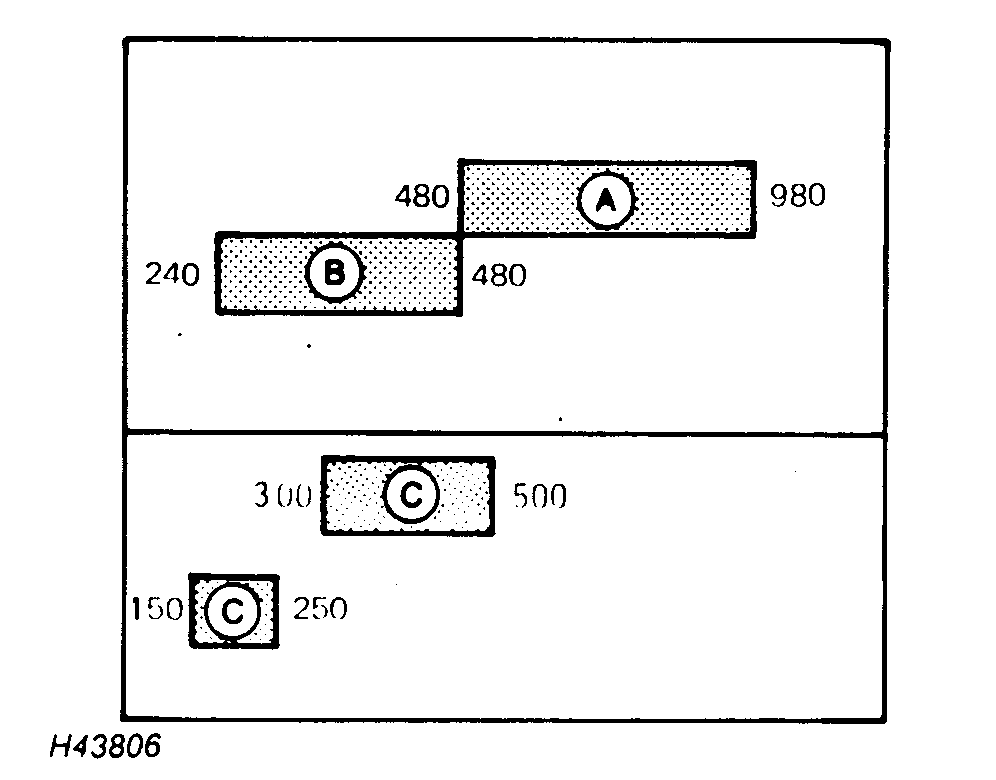

A-High Range (Standard Drive)
B-Low Range (Standard Drive)
C-Slow Speed Drive (Dealer Installed)

H43806

OUO6075,00001C7 -19-04DEC00-1/1
