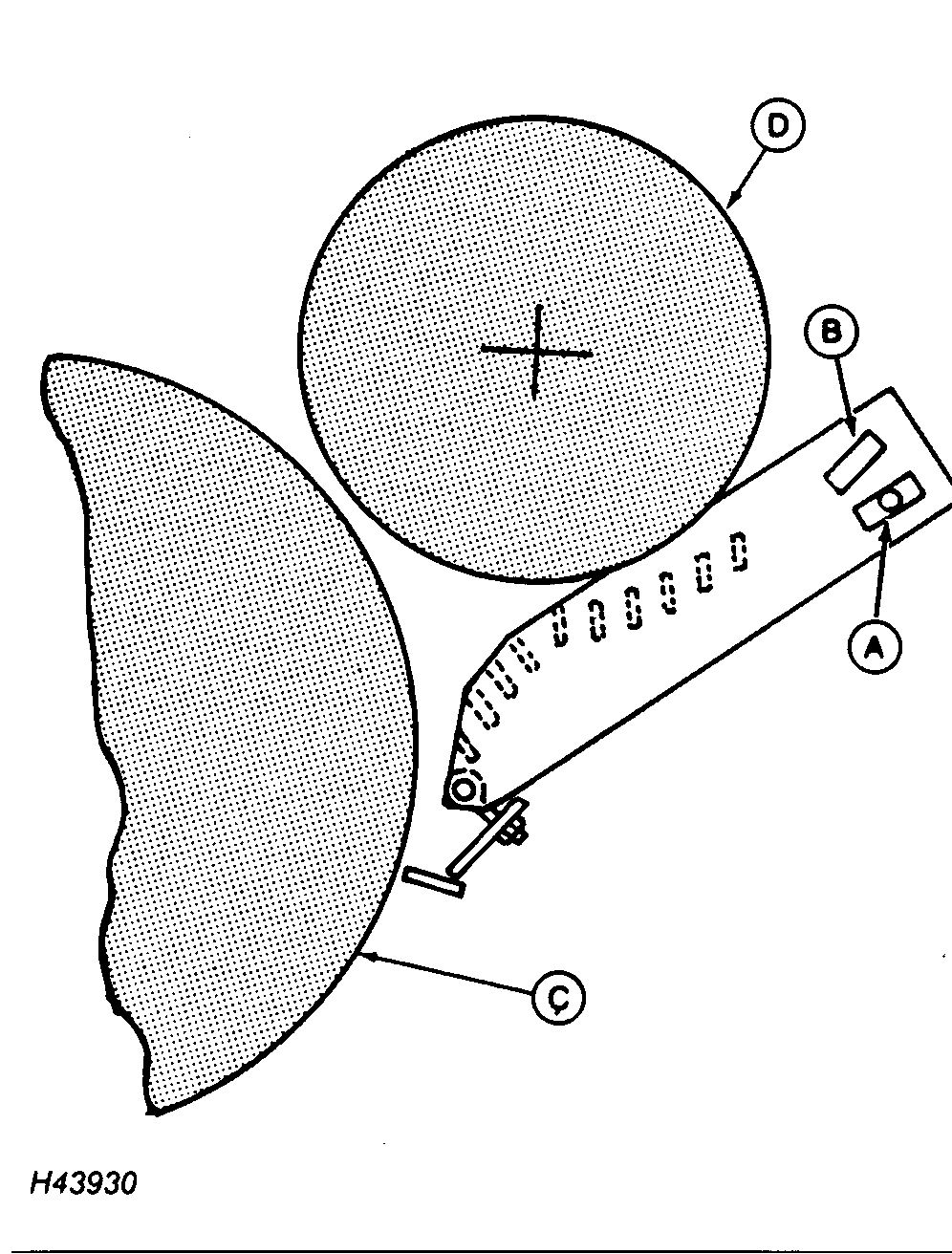

Adjusting Beater Grate (Rasp Bar Cylinder)NOTE: Grate curtain must be removed to prevent damage to the walkers and to the curtain. The beater grate is assembled in the up position (hole A) for all crops. If backfeeding is a problem, move beater grate to hole (B).
|
|
OUO6075,000029C -19-12DEC00-1/1 |
