50 Hours or Weekly
|
|

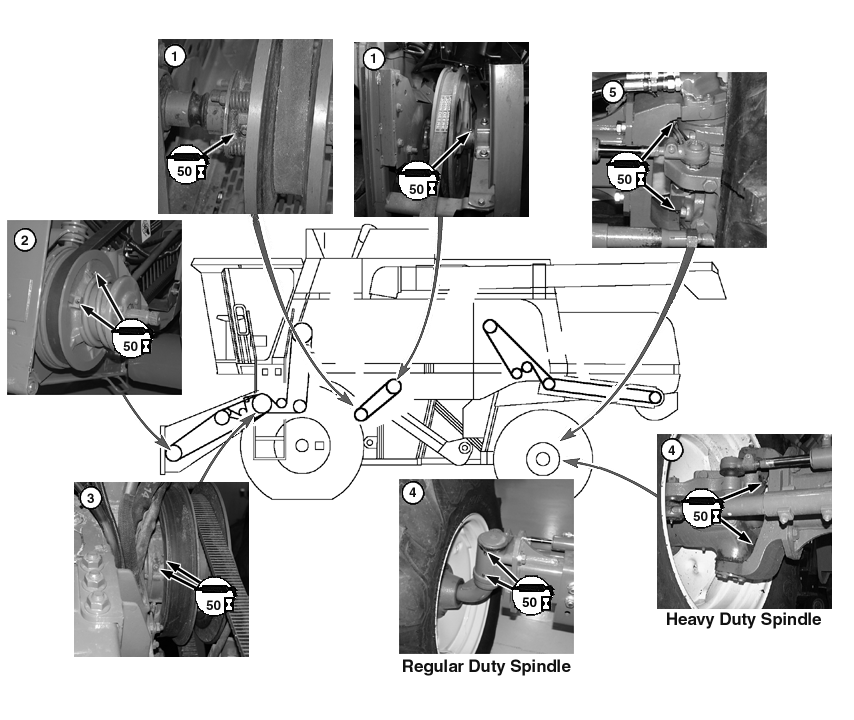

1. Cleaning Fan Variable Sheaves. 2. Feeder House Lower Sheaves (10-15 pumps of grease). 3. Feeder House Upper Sheaves. a. Raise feeder house. b. Lower safety stop. c. Lube from underside of feeder house. |
d. Rotate sheaves for access to fitting. 4. Rear Axle Spindles - Standard Axle (Both Sides). NOTE: When operating in mud and water grease rear axle spindle bearings and motor pivots at 10 hours. In normal conditions grease at 50 hours. 5. Motor Pivots and 2-Speed 4-Wheel Drive (both sides). Lube two fittings. |
OUO6075,0000378 -19-08JAN01-1/1 |
