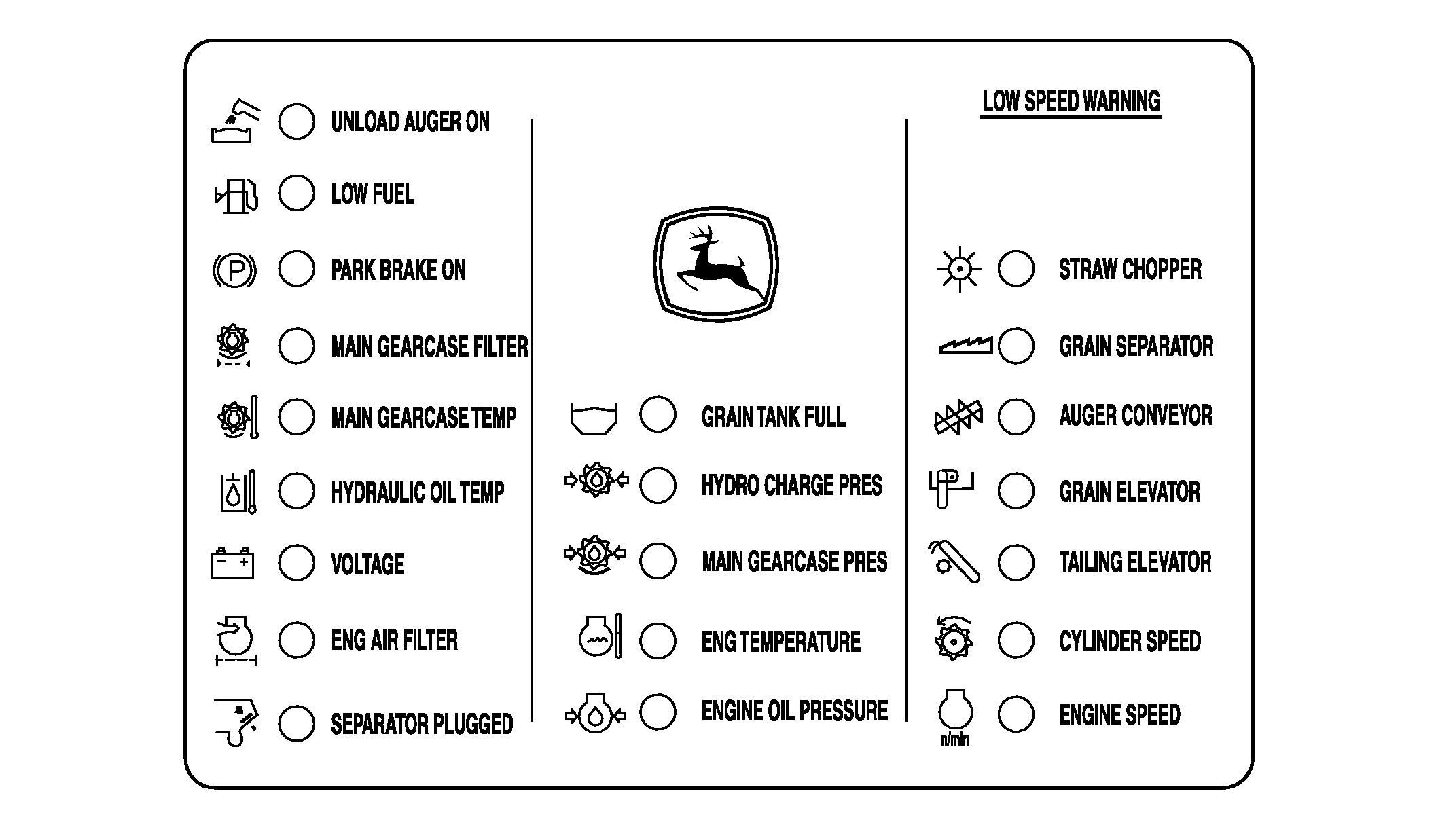

Shows a red, yellow, or green light and sounds a buzzer for the following conditions:

• Red Light - Stop engine at once and correct problem
• Yellow Light - Service or correct problem. Stop engine as required.
• Green Light - Be aware of condition.

When key is in start position, all lights on the panel will come on.

These warning lights dim at night when the field or road lights are on.

OUO6075,00003FA -19-01JUN01-1/1
