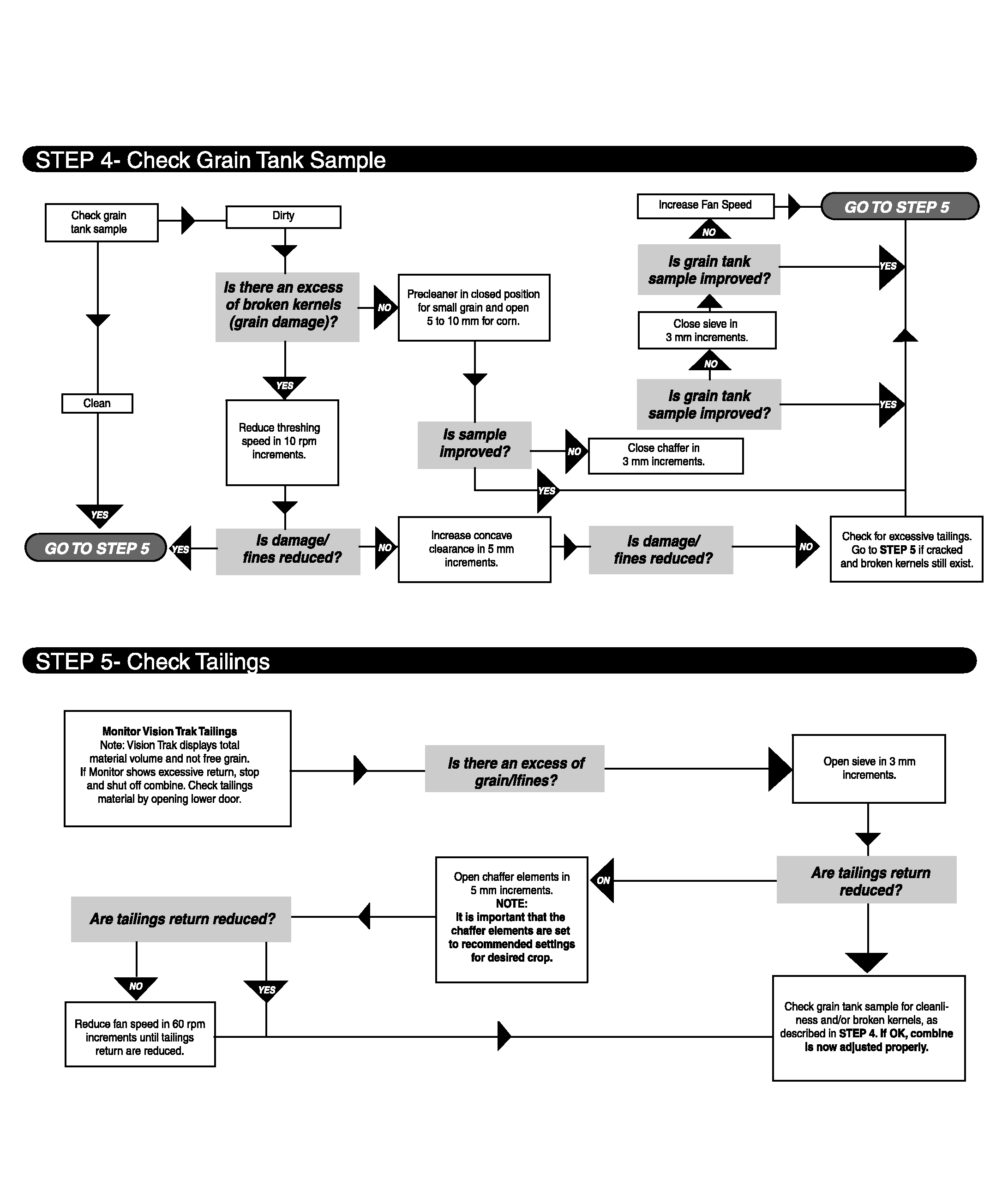

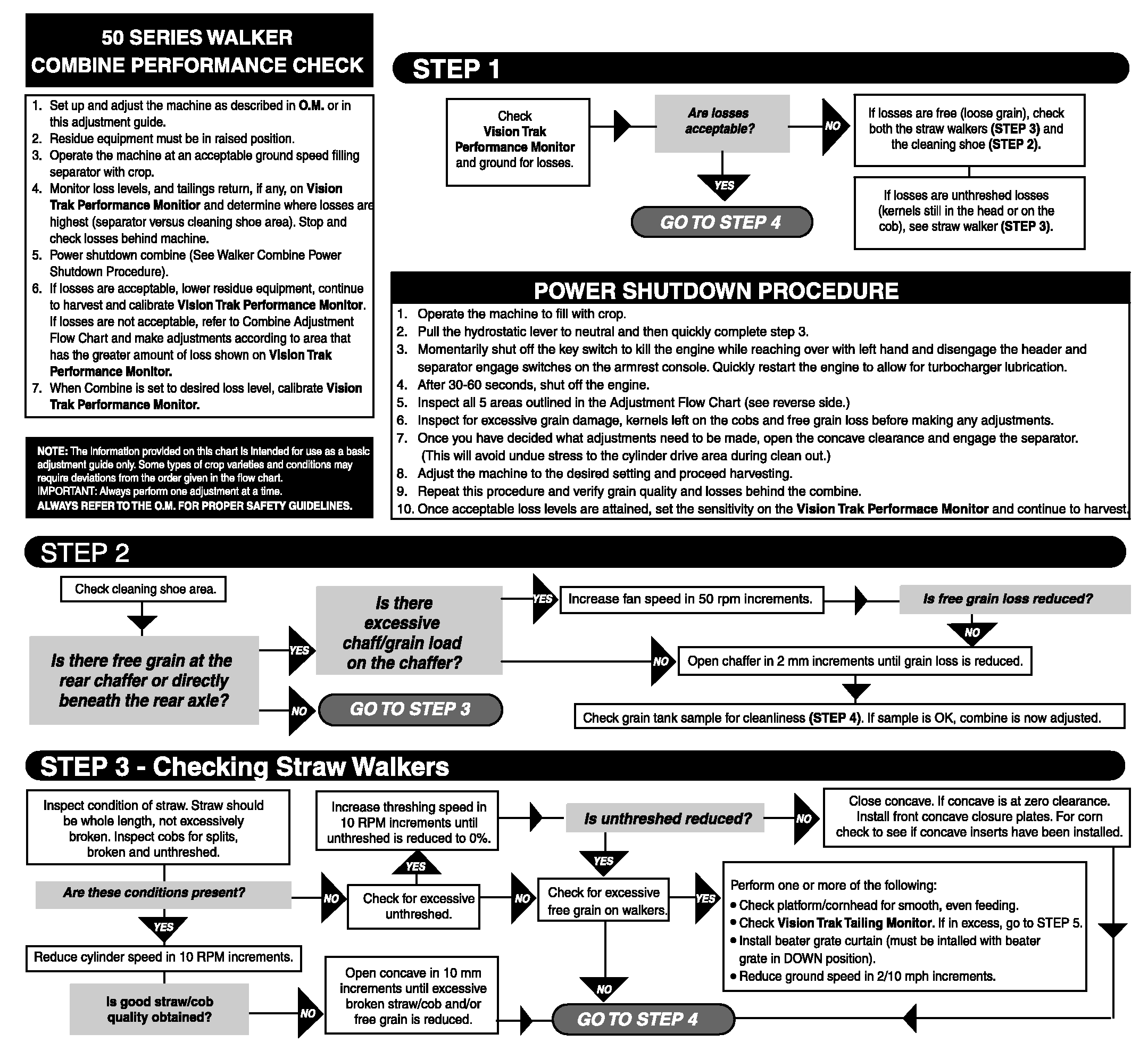

NOTE: This flow chart is a basic adjustment guide only. Some crop varieties and conditions may require deviation from the suggested guide. It

is important that you perform one step (adjustment) at a time.

OUO6075,000159E -19-19MAR01-1/2

OUO6075,000159E -19-19MAR01-2/2
