Adjusting Chopper Vanes

CAUTION: Shut off engine, remove key, and set parking brake.

Adjust vanes (A) so material is spread over a wide area but does not cover uncut crop.

Loosen bolts (B), adjust vanes and tighten bolts.

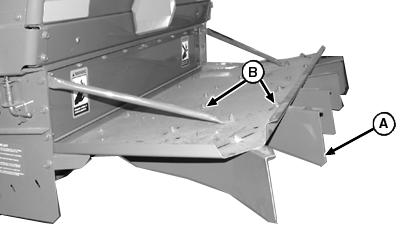

A-Vanes
B-Bolts
