Draining Water Separator (9650 Combine)

When fuel/separator bowl (A) senses water in the fuel system an error code will be displayed.

If an error code appears drain fuel/water separator bowl using water drain (B) and reset error code.

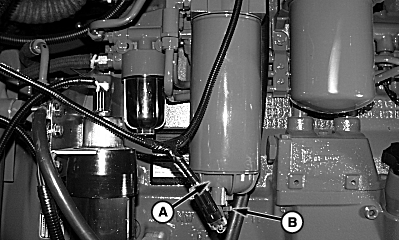

A-Separator Bowl
B-Water Drain

OUO6075,00015CA -19-02APR01-1/1
