CAUTION: Always remove ignition key before performing maintenance work on fuel filter.
Drain filter (A) by loosening bleed plug (B) and opening drain plug (C).
Turn key switch and pump the transfer pump to bleed the system.

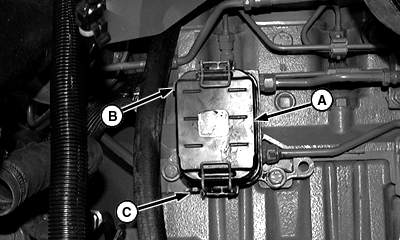

A-Fuel Filter B-Bleed Plug C-Drain Plug
OUO6075,00015CC -19-03APR01-1/1
CAUTION:
Always remove ignition key before performing maintenance work on fuel filter.
