Alternator and Voltage Regulator

Always disconnect battery ground cable before working on alternator (A) or regulator.

This combine is equipped with either a 95 amp or optional 185 amp alternator. Never attempt to polarize alternator or regulator.

Never ground a terminal or connect a jumper wire to any alternator terminals.

Never connect or disconnect alternator wires with batteries connected or alternator operating.

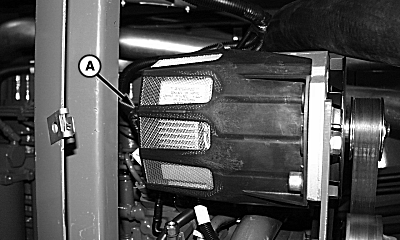

A-Alternator
