Removing Compressor Drive Belt (9450 and 9550 Combines)

causym CAUTION: Turn off engine, remove key and set parking brake.

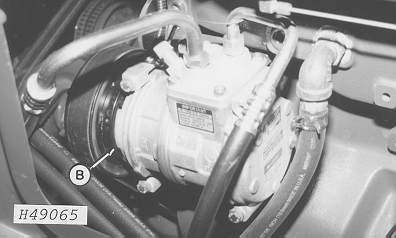

NOTE: The compressor (A) is located on the front side of the engine. To access the compressor, remove the engine service panel located on the rear wall of the grain tank.

Remove rotary screen drive belt (See Removing Rotary Screen Drive Belt in the Engine Service section of this manual).

H49065


A-Compressor

OUO6075,0001613 -19-10APR01-1/2

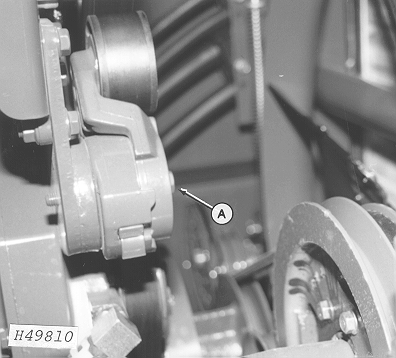

Release tension on the drive belt using a breaker bar and socket on bolt (A) on the belt tensioner. Remove drive belt.


A-Bolt

H49810
