Replacing Rotary Screen Drive Belt (9450 Combine)

CAUTION: Shut off engine, remove key and set parking brake.

Remove engine fan belt (See REPLACING ENGINE FAN BELT in this section).

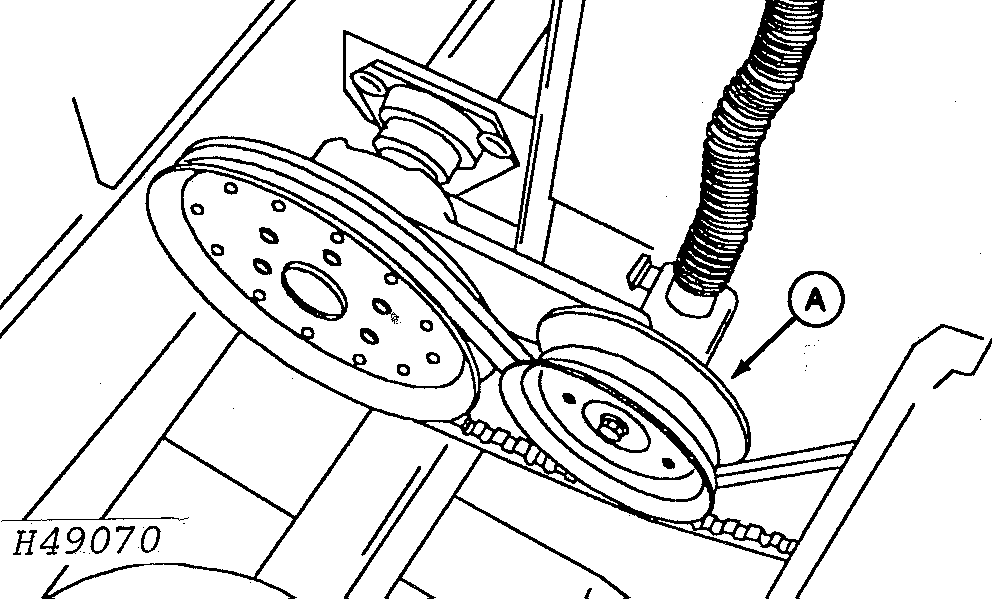

Raise idler (A) and remove drive belt.

A-Idler

OUO6075,0001644 -19-12APR01-1/1
