Fuel System (9450 and 9550 Combine)

Drain water out of water trap (A) and engine filters. (See DRAINING FILTER ELEMENT in Service-Engine Section).

If dirty fuel has been used, change filter (B) before changing the engine fuel filters.

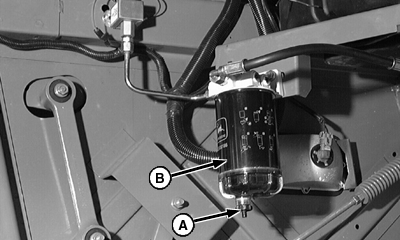

A-Water Trap
B-Filter

OUO6075,0001666 -19-24APR01-1/1
