Water Separator Filter Replacement (9450 and 9550 Combines)

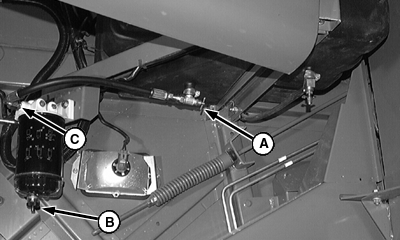

Shut off valve (A).

Drain fuel from separator at drain (B). Remove and replace filter.

Open valve (A). Let air bleed through (B) and fuel line (C).

See "BLEEDING FUEL LINES".

A-Valve
B-Drain
C-Fuel Line

OUO6075,0001669 -19-24APR01-1/1
