Grain Tank Sample Trough

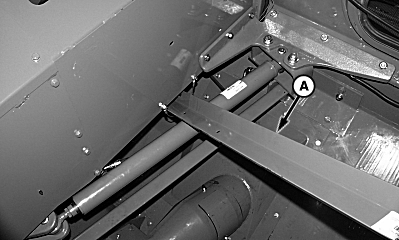

A sample trough (A) allows the operator to get a sample from the loading auger without entering the grain tank.

To get a sample:

With combine full of crop, bring multi-function handle to neutral and stop. Apply the parking brake.

Shut off header but leave separator engaged.

CAUTION: Do not have a extra rider check for a grain tank sample.

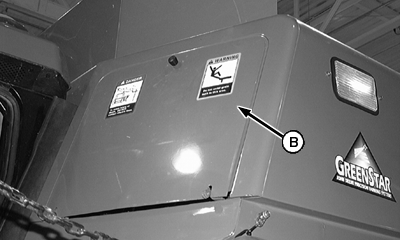

Open door (B). The lower end of the trough will spill off a sample.

A-Sample Trough
B-Door
