Right-Hand Side Cab Access

Raise feeder house.

causym CAUTION: Engine must be off, park brake set and key removed.

Turn engine off, remove key and lower safety stop.

IMPORTANT: Close cab door before using safety rail next to cab door.

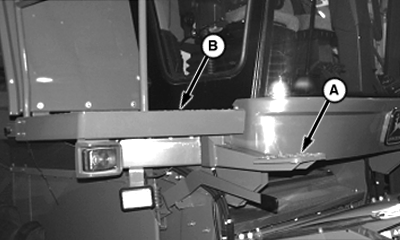

Use step (A) to get to landing (B).

H62099


A-Step
B-Landing

AG,OUO1035,1400 -19-05JAN00-1/1
