Cleaning Precleaner

NOTE: Clean this filter only if other service does not provide enough cooling. The evaporator filter can be inspected from outside the cab after removing the fresh air filter. If it looks clean, do not remove and clean it. If filter requires cleaning see your John Deere dealer.

Whenever the fresh air filter is serviced, clean the precleaner as follows:

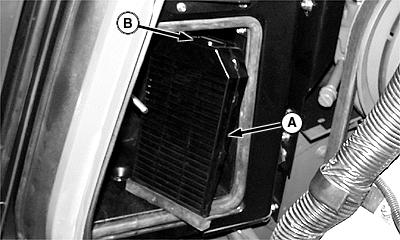

Remove fresh air filter and tray. Push down on precleaner (A) and pull it out from the top (B). Hole in floor under precleaner must be kept open.

Wash and dry precleaner and reinstall. Be certain to service fresh air filter and tray.

A-Precleaner
B-Top

HX,AG,SF7392 -19-19OCT99-1/1
