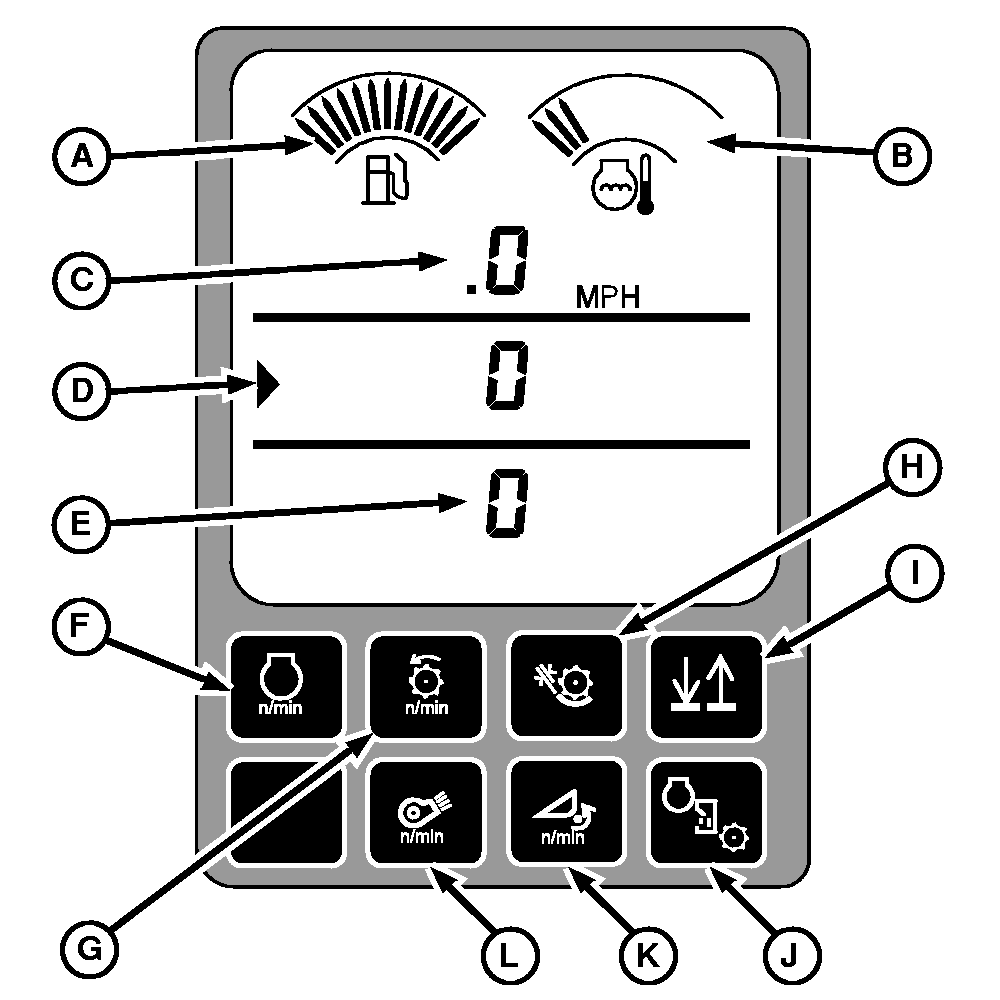

Triple Display Tachometer
A-Fuel Gauge
B-Coolant Temperature Gauge
C-Upper Line Display
D-Middle Line Display
E-Lower Line Display
F-Engine Speed
G-Threshing Speed
H-Concave Clearance
I-Up/Down Arrows (Display Line Select)
J-Fan Speed
K-Backshaft Speed
L-Engine Hours/Separator hours
|
