Adjusting Upper Tailings Auger Drive Chain

CAUTION: Shut off engine, set park brake and remove key.

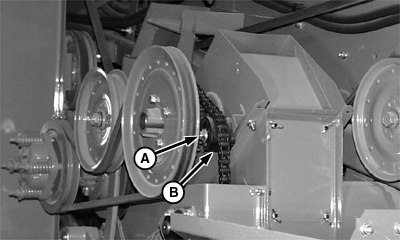

Loosen bolt (A).

Adjust block (B) to tighten chain.

Tighten bolt.

A-Bolt
B-Block

OUO6075,000014F -19-01DEC00-1/1
