Rear Wheel Bolt Torque

Each time a rear wheel is removed, torque wheel bolts to specification. Then, re-torque wheel bolts after one hour of operation.

Specification

Wheel Bolts (Non-Powered Axles) -Torque (Dry) 315 N·m (232 lb-ft)
Wheel Bolts (Powered Axles) -Torque (Dry) 200 N·m + 1/4 turn (150 lb-ft + 1/4 turn)

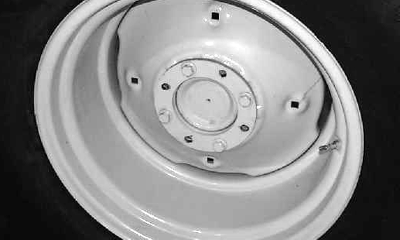

NOTE: Mount rear tires with the offset "in" and valve stems to the outside.

H57469
