Adjusting Header Drop Rate

NOTE: Lower header to ground to relieve circuit pressure before adjusting header drop rate.

WITHOUT ACTIVE HEADER CONTROL: Loosen nut (A) and turn screw for faster drop rate, turn screw in for slower drop rate.

WITH ACTIVE HEADER CONTROL: Adjust drop rate as described, open accumulator two turns and adjust with knob (B) as needed.

Tighten nut after adjusting.

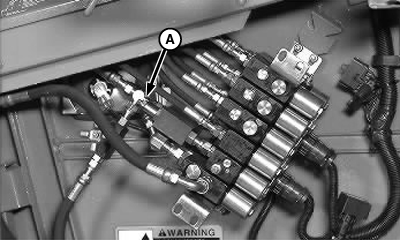

A-Nut

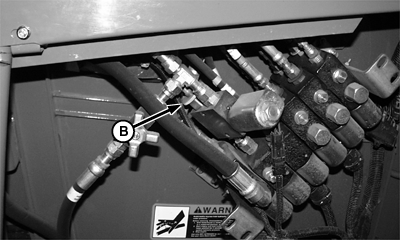

B-Knob

OUO6075,00001E0 -19-04DEC00-1/1
