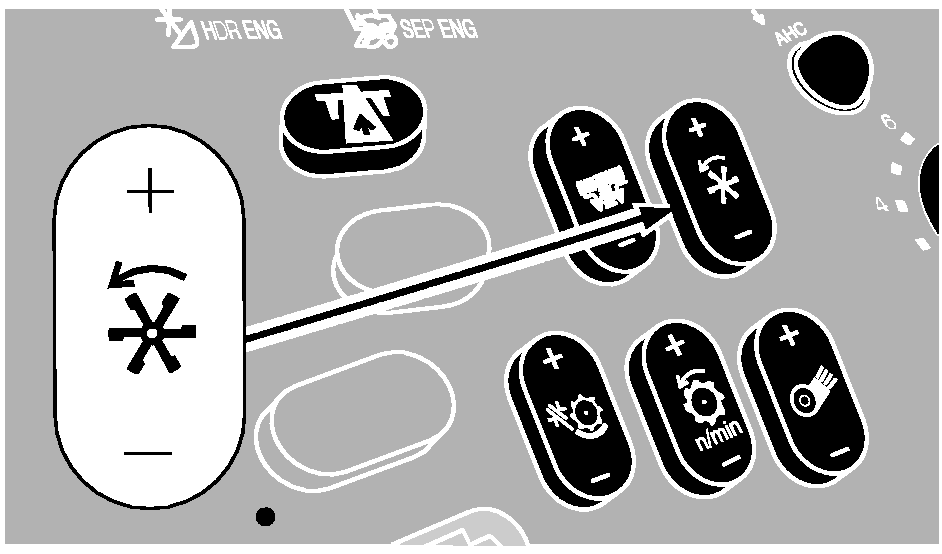

Manual Reel Speed Switch (Black)

NOTE: Turn DIAL-A-SPEED off for manual control. If equipped with DIAL-A-SPEED, the automatic function can be over ridden by the manual control, but will resume operation when the switch is released.

With header engage and separator engage switches on, push and hold plus (+) symbol to increase speed or push and hold minus (-) symbol to decrease speed.

OUO6075,00001E8 -19-04DEC00-1/1
