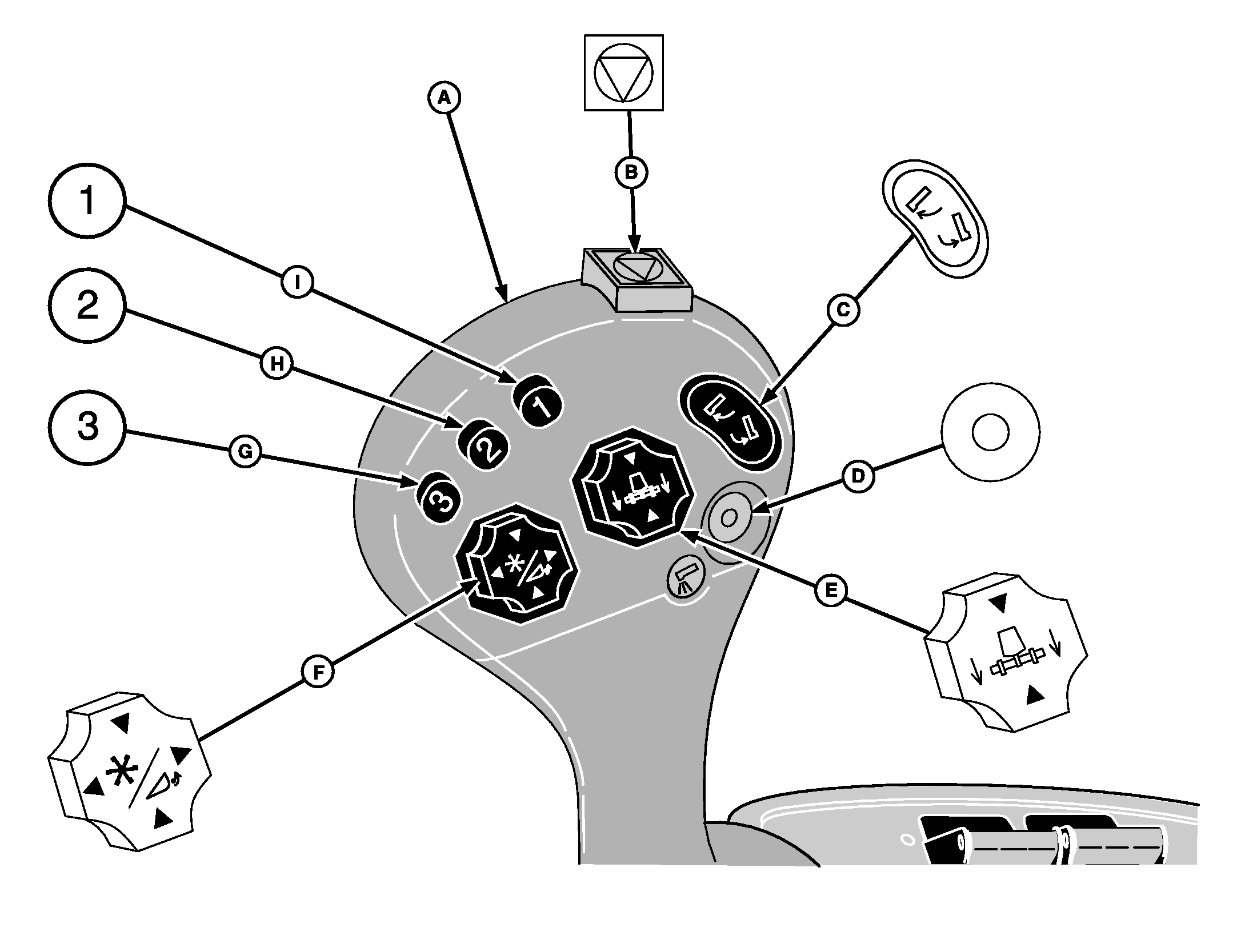

A-Forward and Reverse Handle
B-Quick Stop Switch
C-Unloading Auger Swing In and Out
D-Unloading Auger Drive Engage/Disengage Light
|
E-Header Raise and Lower/ CONTOURMASTER (Optional)
F-Reel Raise/Lower and Reel Fore and Aft (Optional)
|
F-Front End Speed if equipped w/Corn Head or Row-Crop Head
F-Adjust Corn Head Adjustable Deck Plates (Optional)
|
G-Activation Button 3
H-Activation Button 2
I-Activation Button 1
|
