Cleanout Moisture Sensor

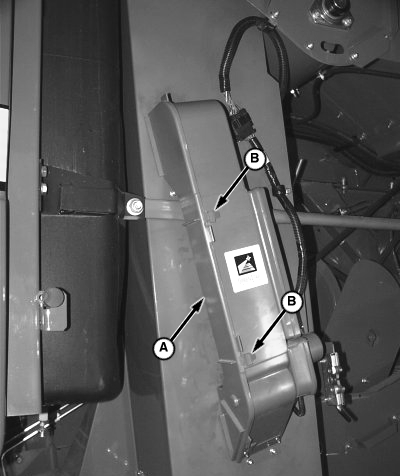

Remove side cover (A) by gently pushing in on seven tabs (B) and pulling out on cover.

In severe conditions, such as mud from edible bean harvest or green weed residue buildup in soybeans, check wear plates residue buildup on a daily basis.

A-Side Cover
B-Tabs

OUO6075,0000371 -19-08JAN01-1/2

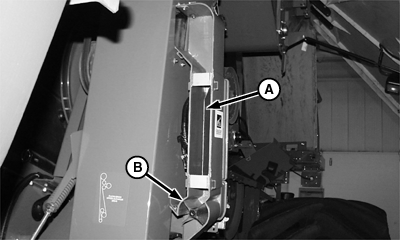

Inspect sensor cell plates (A) for residue buildup. Plates can be cleaned with a clean damp cloth.

Inspect paddle wheel assembly (B). Paddle wheel assembly can be removed to be cleaned or to clear out any obstructions.

A-Cell Plates
B-Paddle wheel Assembly

OUO6075,0000371 -19-08JAN01-2/2
