Draining Water Separator

causym CAUTION: Always remove ignition key and set park brake before performing maintenance work on fuel filter.

When fuel/separator bowl (A) senses water in the fuel system an error code will be displayed.

If an error code appears drain fuel/water separator bowl using water drain (B) and reset error code.

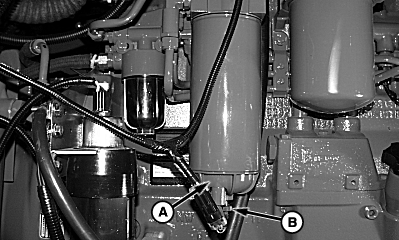

A-Separator Bowl
B-Water Drain

H67144

OUO6075,00015CA -19-02APR01-1/1
