Cleaning Condenser

causym CAUTION: Turn off engine, remove key and set parking brake.

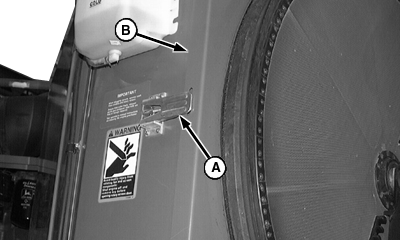

Release latch (A) and open rotary screen door (B).


A-Latch
B-Rotary Screen Door

H54243

OUO6075,00015F3 -19-04APR01-1/2

Pull out condenser (A) and oil cooler to clean.

Clean oil cooler, condenser and radiator.

Clean out lower vacuum duct (B) and duct (C).

IMPORTANT: When using high pressure air or water, be careful of fin damage to coolers. Use a fin comb to straighten bent fins. Bent fins will decrease cooler performance.

Keep fins on condenser straight. After cleaning, close and latch rotary screen door.


A-Condenser
B-Vacuum Duct
C-Duct

H67232
H62315
