Replacing Fuel Precleaner Filter

CAUTION: Always remove ignition key and set park brake before performing maintenance work on fuel filter.

How often pre-filter is changed, depends on how clean the fuel is and how it was stored.

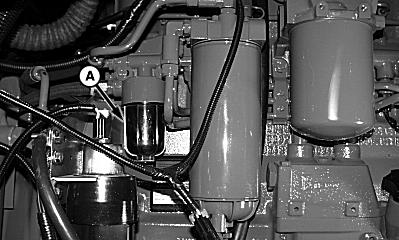

To clean the pre-filter unscrew pre-filter bowl (A). Clean filter screen. Reinstall pre-filter and screw pre-filter bowl back on.

Start engine and run engine immediately at high idle.

A-Pre-filter Bowl

OUO6075,00015F5 -19-04APR01-1/1
