Service As Required

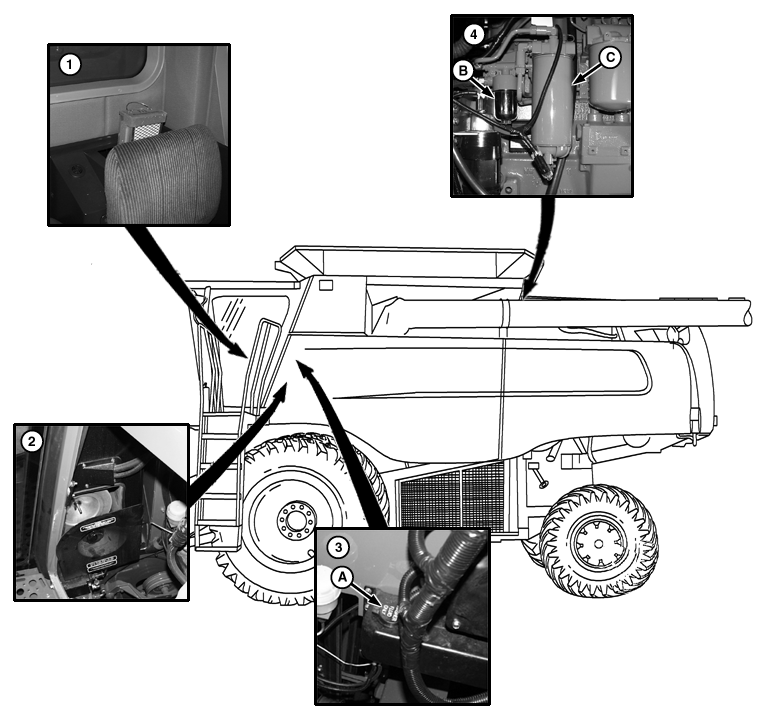

H67216


A-Windshield Washer Reservoir Cap

B-Pre-cleaner Fuel Filter Bowl

C-Fuel Filter



1. Recirculating Filter. Remove tray, reach in and lift out filter. Clean or replace as needed. Make sure air flow arrow points towards front of cab.

2. Cab Fresh Air Filter. Turn knob and pull out tray. Remove wing nut and filter. Clean or replace as needed.

3. Windshield Washer Reservoir (Optional). Open cap (A) and fill as needed with solvent.

4. Remove pre-cleaner filter bowl (B) and clean pre-cleaner filter and reinstall. See (Replacing Fuel Precleaner Filter).

Replace fuel filter (C). (See Replacing Fuel Filter).

OUO6075,00015F9 -19-05APR01-1/2

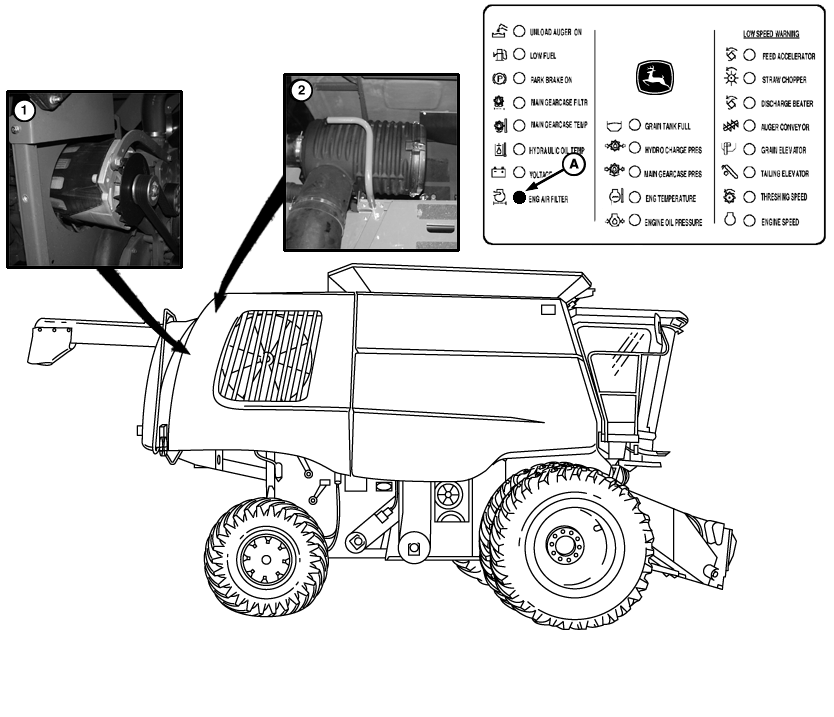

H67217


A-Warning Light



1. Alternator Screen. Clean alternator screen when 50% covered with debris.

2. Air Cleaner Element. Service primary filter only when shown by warning light (A). Check precleaner

for plugging. Check for leaks and for collapse of aspirator tube. Replace element if plugged.

OUO6075,00015F9 -19-05APR01-2/2
