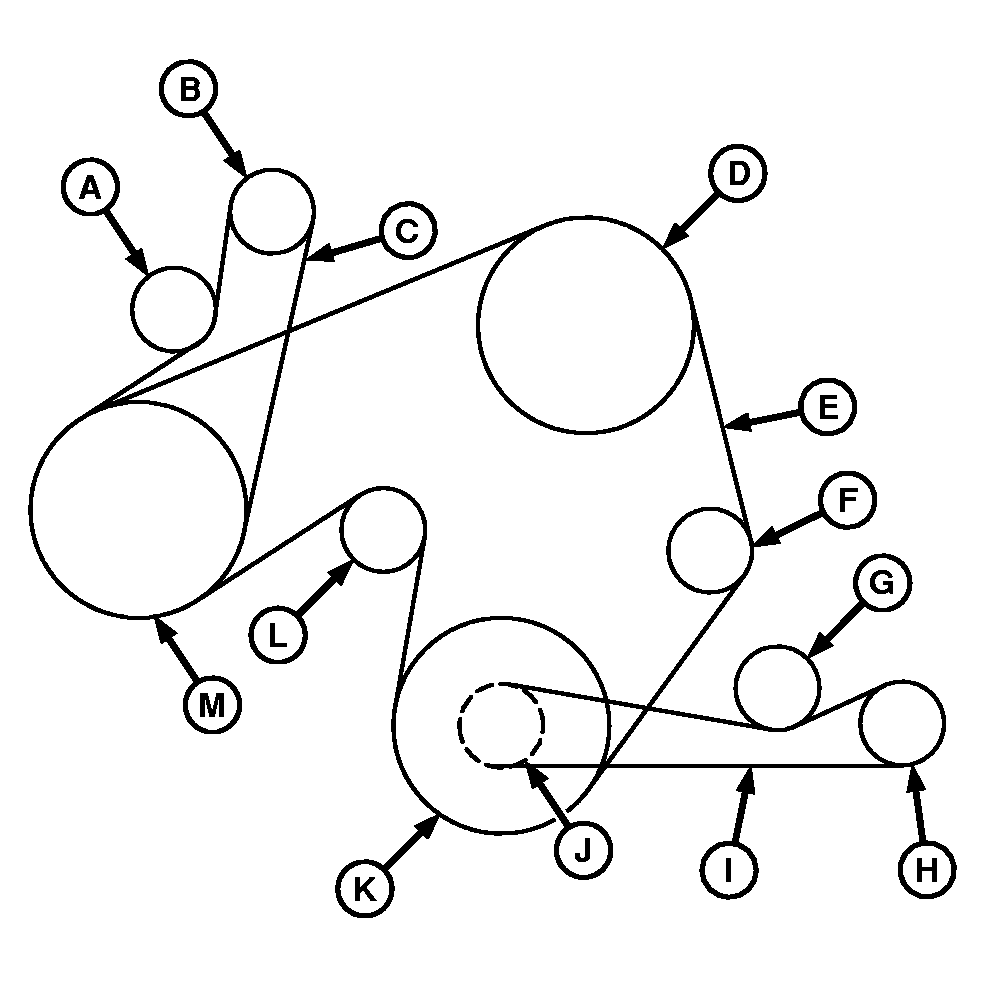

Engine Accessory Drive Belt Routing
A-Spring Loaded Idler
B-Alternator
C-Alternator Belt
D-Water Pump Sheave
E-Fan Belt
F-Air Conditioning Compressor
G-Tension Idler
H-Rotary Screen Driven Sheave
I-Rotary Screen Drive Belt
J-Rotary Screen Drive Sheave
K-Engine Crank Shaft Sheave
L-Spring Loaded Idler
M-Fan Drive Sheave
|
