Alternator and Voltage Regulator

Always disconnect battery ground cable before working on alternator (A) or regulator.

This combine is equipped with a 95 amp (standard) or a 185 amp (optional) alternator. Never attempt to polarize alternator or regulator.

Never ground a terminal or connect a jumper wire to any alternator terminals.

Never connect or disconnect alternator wires with batteries connected or alternator operating.

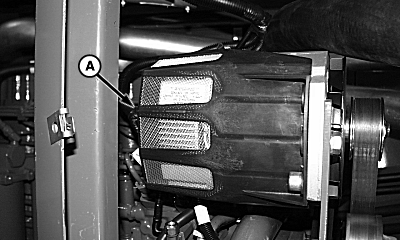

A-Alternator

OUO6075,00016A6 -19-10MAY01-1/1
