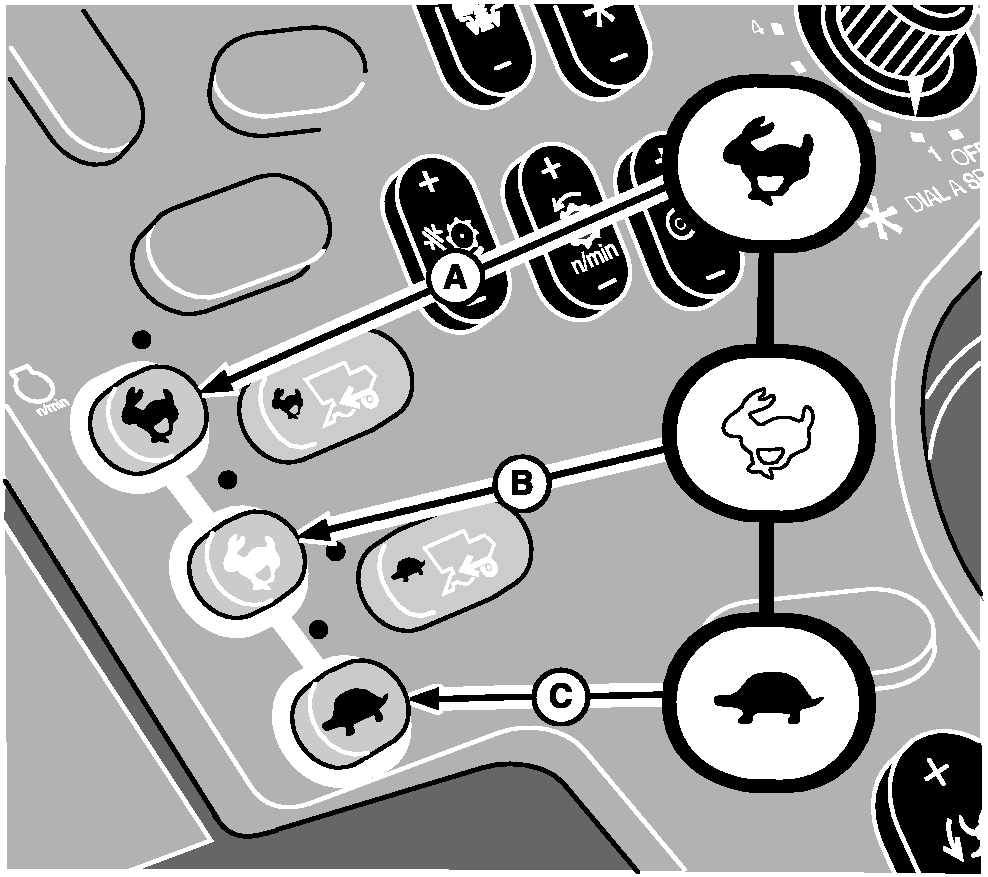

Engine Speed Switches (Orange)

For fast idle (2340 rpm) press switch (A)

For mid speed (1650 rpm) press switch (B).

For slow idle (1200) press switch (C).


A-Fast Idle Switch
B-Mid Speed Switch
C-Low Idle Switch

H65468

OUO6075,00016E0 -19-18MAY01-1/1
