Stopping the Engine

1. Lower header or reel to the ground. If equipped with optional reel fore/aft, move reel all the way forward.

2. Move multi-function handle (A) to neutral and stop header (B) and separator (C).

IMPORTANT: Cooling of turbocharger and some engine parts is provided by engine oil. Stopping a hot engine might cause damage to these parts.

3. Before stopping engine that has been operating at working load, idle at least one minute to cool turbocharger.

CAUTION: Remove key from switch and set parking brake before leaving the combine.

4. Turn key and all other switches off.

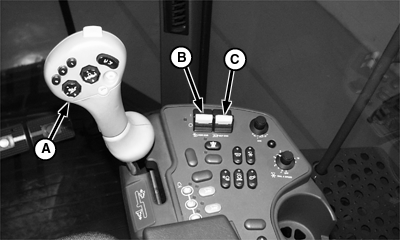

A-Multi-Function Handle
B-Header Switch
C-Separator Switch

OUO6075,00016EA -19-18MAY01-1/1
