Transporting Combine on a Trailer

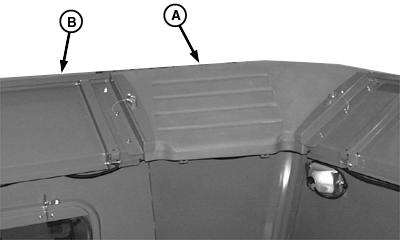

1. Empty grain tank, remove header and remove outside dual wheels (if equipped). 2. To reduce overall height, swing unloading auger back; remove quick-lock pins and corner extensions (A); and fold down grain tank extensions (B) (if equipped). |
|
CAUTION:
Avoid collisions with other roadway users. Before transporting on a public roadway check and follow local regulations regarding the use of lights, flags, over-width signs, pilot vehicles and other requirements for wide loads.
OUO6075,00016EE -19-18MAY01-1/9 |
|

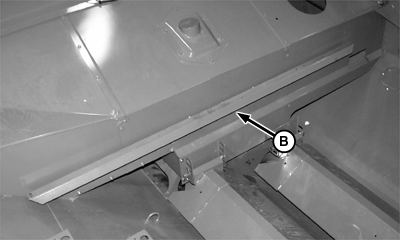

3. Remove quick-lock pin (A) and sample trough (B). 4. Place grain sample trough in storage position. 5. Release clamps (C) and lower auger. 6. Drive combine on trailer and put multi-function handle in neutral. 7. Stop engine, remove key and set parking brake. 8. Fold radio antenna down.
|
|
OUO6075,00016EE -19-18MAY01-2/9 |
|

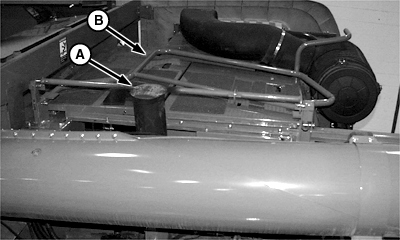

9. Tape exhaust pipe cap (A) closed to prevent damage to turbocharger. 10. Lower hand rail (B).
|
|
OUO6075,00016EE -19-18MAY01-3/9 |
|

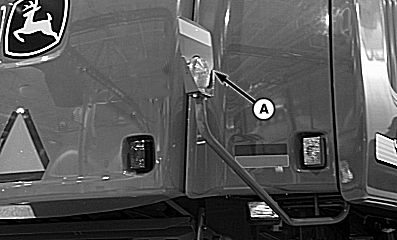

11. Swing left-hand and right-hand warning lamp (A) rearward.
|
|
OUO6075,00016EE -19-18MAY01-4/9 |
|

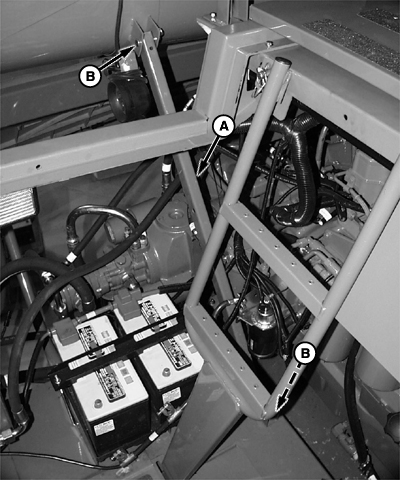

12. Attach arm (A) to unloading auger and bracket with pins (B).
|
|
OUO6075,00016EE -19-18MAY01-5/9 |
|

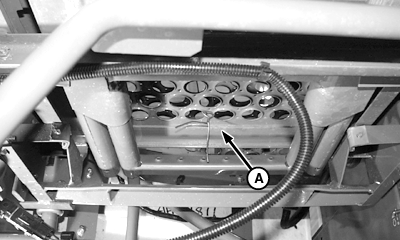

13. Wire down ladder extension and platform (A).
|
|
OUO6075,00016EE -19-18MAY01-6/9 |
|

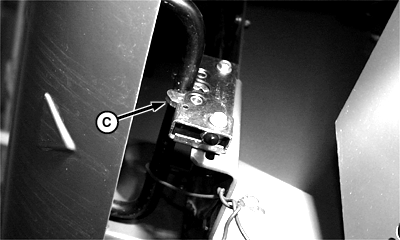

14. Make sure that pin (A) is installed through locking plate (B) and retained with spring pin at front corner of right-hand gull wing door and door latch (C) is fully engaged. 15. Wire down door at latch (C).
|
|
OUO6075,00016EE -19-18MAY01-7/9 |
|

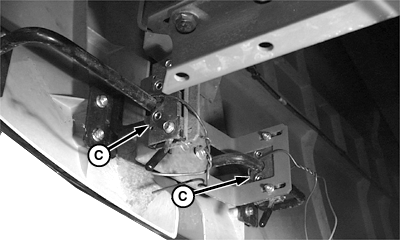

16. Make sure pins (A) are installed through locking plates (B) and retained with spring pins at front and rear corners of left-hand gull wing doors and door latch (C) is fully engaged. 17. Wire down door at latches (C).
|
|
OUO6075,00016EE -19-18MAY01-8/9 |
|

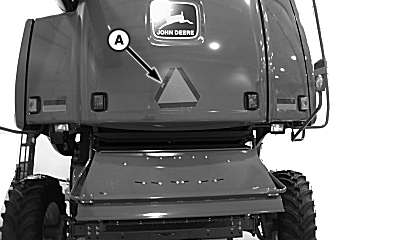

18. Cover up slow moving vehicle emblem (A). IMPORTANT: Fasten combine to trailer with chains. 19. Fasten combine to trailer with chains.
|
|
