Feeder House Shields

causym CAUTION: Turn off engine, set park brake and remove key.

The right-hand and left-hand side feeder house has a front and rear shield. Raise rubber strap (A) and swing the front shield open for service.

Remove quick-lock pin (B) to remove rear shield.


A-Rubber Strap
B-Quick-Lock Pin

H52793

Rubber Strap/Quick-Lock Pin (R.H. Side)

H52796

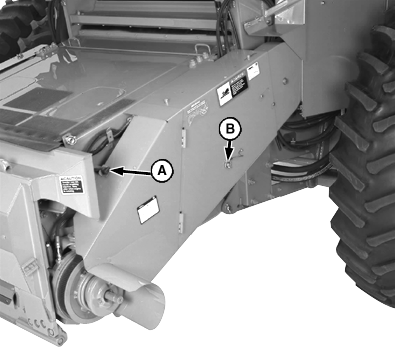

Rubber Strap/Quick-Lock Pin (L.H. Side)

OUO6075,00016EF -19-21MAY01-1/1
