Slip Clutch

A non-adjustable slip clutch protects the upper shaft.

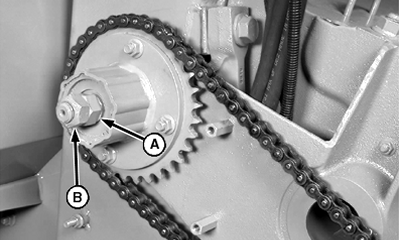

If the slip clutch is removed, tighten flange nut (A) and lock nut (B) to specification.

Specification

Flange and Lock Nuts -Torque 350 N·m (258 lb-ft)


A-Flange Nut
B-Lock Nut

H68182

Shield Removed for Clarity

OUO6075,00016F0 -19-21MAY01-1/1
