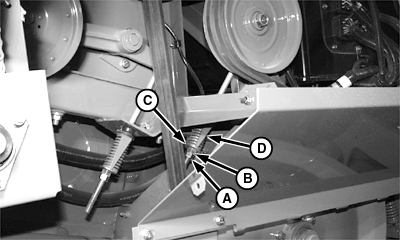

Adjusting Right-Hand Front Countershaft Belt

Loosen locking nut (A).

Tighten nut (B) until washer (C) aligns with end of gauge (D).

Tighten locking nut.

A-Locking Nut
B-Nut
C-Washer
D-Gauge

OUO6075,00016F7 -19-21MAY01-1/1
